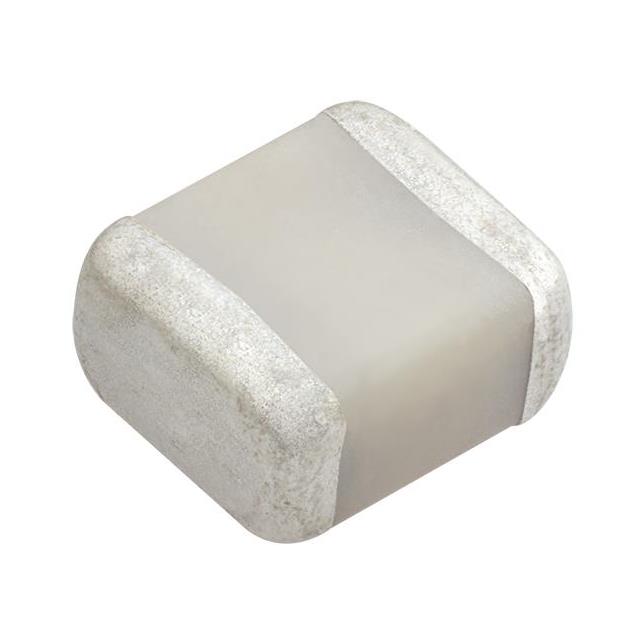

C11AH220JK9UN-X1T

Active

Knowles Johanson Manufacturing

CAP CER 0505

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C11AH220JK9UN-X1T

Active

Knowles Johanson Manufacturing

CAP CER 0505

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C11AH220JK9UN-X1T

null

C11AH Series

Part	Applications	Package / Case	Package / Case	Mounting Type	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Rated
Knowles Johanson Manufacturing C11AH6R8B-9ZN-X1T	High Frequency Microwave RF	0505	1313 Metric	MLCC Surface Mount	0.1 pF	-55 °C	125 °C	6.8 pF	0.055 in	1.4 mm	0.055 in	1.4 mm	250 V
Knowles Johanson Manufacturing C11AH470J-6UN-X1T	High Frequency Microwave RF	0505	1313 Metric	MLCC Surface Mount	5 %	-55 °C	125 °C	47 pF	0.055 in	1.4 mm	0.055 in	1.4 mm	200 V
Knowles Johanson Manufacturing C11AH680K-8UN-X1T	High Frequency Microwave RF	0505	1313 Metric	MLCC Surface Mount	10 %	-55 °C	125 °C	68 pF	0.055 in	1.4 mm	0.055 in	1.4 mm	150 V
Knowles Johanson Manufacturing C11AH0R2B-9UN-X1T	High Frequency Microwave RF	0505	1313 Metric	MLCC Surface Mount	0.1 pF	-55 °C	125 °C	0.2 pF	0.055 in	1.4 mm	0.055 in	1.4 mm	250 V
Knowles Johanson Manufacturing C11AH820J-8UN-X1T	High Frequency Microwave RF	0505	1313 Metric	MLCC Surface Mount	5 %	-55 °C	125 °C	82 pF	0.055 in	1.4 mm	0.055 in	1.4 mm	150 V
Knowles Johanson Manufacturing C11AH100K-9ZN-X1T	High Frequency Microwave RF	0505	1313 Metric	MLCC Surface Mount	10 %	-55 °C	125 °C	10 pF	0.055 in	1.4 mm	0.055 in	1.4 mm	250 V
Knowles Johanson Manufacturing C11AH220JK9UN-X1T
Knowles Johanson Manufacturing C11AH5R6B-9ZN-X1T	High Frequency Microwave RF	0505	1313 Metric	MLCC Surface Mount	0.1 pF	-55 °C	125 °C	5.6 pF	0.055 in	1.4 mm	0.055 in	1.4 mm	250 V
Knowles Johanson Manufacturing C11AH2R0B-9ZN-X1T	High Frequency Microwave RF	0505	1313 Metric	MLCC Surface Mount	0.1 pF	-55 °C	125 °C	2 pF	0.055 in	1.4 mm	0.055 in	1.4 mm	250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

C11AH Series

Ceramic Capacitor

Documents

Technical documentation and resources
