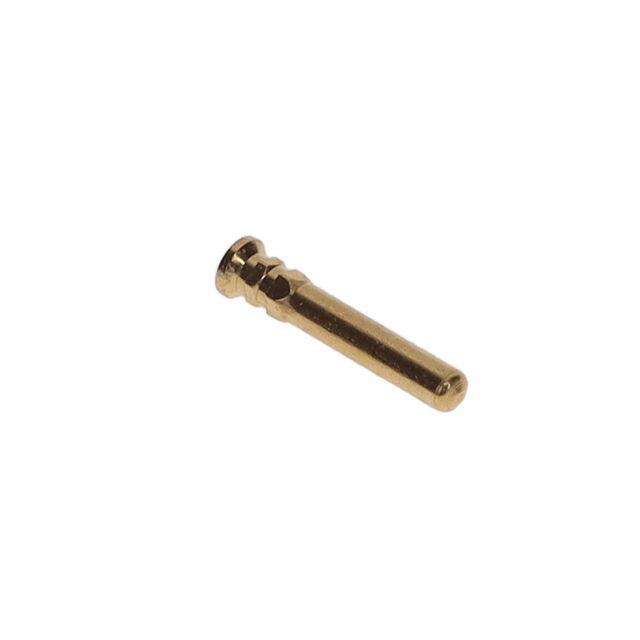

8553-0-15-15-11-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN RECEPT PIN .015-.021" .229"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8553-0-15-15-11-27-10-0

Accepts Pin Diameter [Max] [diameter]	0.51 mm
Accepts Pin Diameter [Max] [diameter]	0.02 "
Accepts Pin Diameter [Min] [diameter]	0.015 "
Accepts Pin Diameter [Min] [diameter]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.4 mm
Flange Diameter [diameter]	0.055 in
Length - Overall [x]	6.22 mm
Length - Overall [x]	0.245 in
Mounting Hole Diameter [diameter]	0.041 in
Mounting Hole Diameter [diameter]	1.04 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Socket Depth	5.82 mm
Socket Depth	0.229 in
Tail Type	No Tail
Termination	Press-Fit, Hex

8553-0 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Length - Overall [x]	Length - Overall [x]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth	Socket Depth	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]
Mill-Max Manufacturing Corp. 8553-0-15-01-21-14-10-0	10 Áin	0.25 Ám	Beryllium Copper	Gold	0.041 in	1.04 mm	No Tail	1.4 mm	0.055 in	Press-Fit Hex	6.22 mm	0.245 in	0.38 mm	0.022 in	0.015 "	0.56 mm	-55 °C	125 °C	0.79 mm	0.031 in	5.82 mm	0.229 in
Mill-Max Manufacturing Corp. 8553-0-15-15-21-14-10-0	10 Áin	0.25 Ám	Beryllium Copper	Gold			No Tail	1.4 mm	0.055 in	Press-Fit Hex	6.22 mm	0.245 in	0.38 mm	0.022 in	0.015 "	0.56 mm	-55 °C	125 °C	0.79 mm	0.031 in	2.11 mm	0.083 in
Mill-Max Manufacturing Corp. 8553-0-15-80-21-14-10-0	10 Áin	0.25 Ám	Beryllium Copper	Gold			No Tail	1.4 mm	0.055 in	Press-Fit Hex	6.22 mm	0.245 in	0.38 mm	0.022 in	0.015 "	0.56 mm	-55 °C	125 °C	0.79 mm	0.031 in	2.11 mm	0.083 in
Mill-Max Manufacturing Corp. 8553-0-15-01-11-14-10-0	10 Áin	0.25 Ám	Beryllium Copper	Gold	0.041 in	1.04 mm	No Tail	1.4 mm	0.055 in	Press-Fit Hex	6.22 mm	0.245 in					-55 °C	125 °C	0.79 mm	0.031 in	5.82 mm	0.229 in	0.015 "	0.51 mm	0.02 "	0.38 mm
Mill-Max Manufacturing Corp. 8553-0-15-80-11-14-10-0	10 Áin	0.25 Ám	Beryllium Copper	Gold			No Tail	1.4 mm	0.055 in	Press-Fit Hex	6.22 mm	0.245 in					-55 °C	125 °C	0.79 mm	0.031 in	2.11 mm	0.083 in	0.015 "	0.51 mm	0.02 "	0.38 mm
Mill-Max Manufacturing Corp. 8553-0-15-01-21-27-10-0	30 Áin	0.76 Ám	Beryllium Copper	Gold	0.041 in	1.04 mm	No Tail	1.4 mm	0.055 in	Press-Fit Hex	6.22 mm	0.245 in	0.38 mm	0.022 in	0.015 "	0.56 mm	-55 °C	125 °C	0.79 mm	0.031 in	5.82 mm	0.229 in
Mill-Max Manufacturing Corp. 8553-0-15-01-21-02-10-0	100 µin	2.54 µm	Beryllium Copper	Tin-Lead	0.041 in	1.04 mm	No Tail	1.4 mm	0.055 in	Press-Fit Hex	6.22 mm	0.245 in	0.38 mm	0.022 in	0.015 "	0.56 mm	-55 °C	125 °C	0.79 mm	0.031 in	5.82 mm	0.229 in
Mill-Max Manufacturing Corp. 8553-0-15-15-11-27-10-0	30 Áin	0.76 Ám	Beryllium Copper	Gold	0.041 in	1.04 mm	No Tail	1.4 mm	0.055 in	Press-Fit Hex	6.22 mm	0.245 in					-55 °C	125 °C	0.79 mm	0.031 in	5.82 mm	0.229 in	0.015 "	0.51 mm	0.02 "	0.38 mm
Mill-Max Manufacturing Corp. 8553-0-15-15-11-14-10-0	10 Áin	0.25 Ám	Beryllium Copper	Gold			No Tail	1.4 mm	0.055 in	Press-Fit Hex	6.22 mm	0.245 in					-55 °C	125 °C	0.79 mm	0.031 in	2.11 mm	0.083 in	0.015 "	0.51 mm	0.02 "	0.38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.42
		10	$ 1.20
		25	$ 1.15
		50	$ 1.13
		100	$ 1.08
		250	$ 0.98
		500	$ 0.88
		1000	$ 0.78
		3000	$ 0.71

Description

General part information

8553-0 Series

Pin Receptacle Connector 0.015" ~ 0.020" (0.38mm ~ 0.51mm) No Tail Press-Fit, Hex
