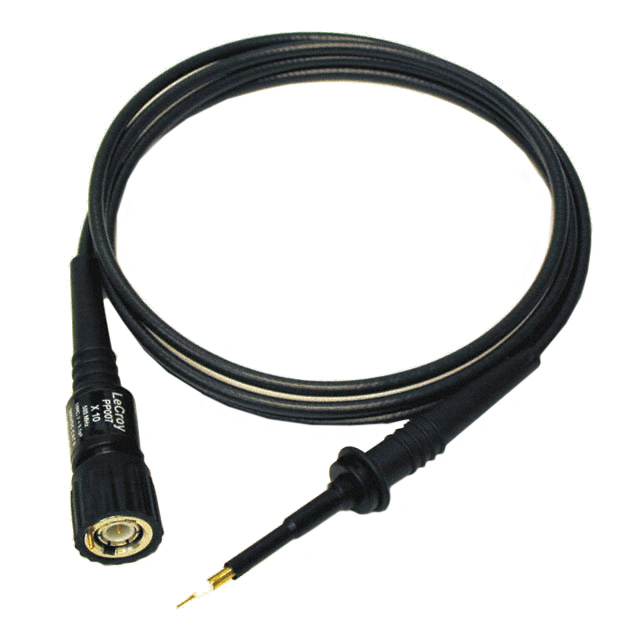

OSCILLOSCOPE PROBE, PASSIVE, 500 MHZ, 400 V, 10:1, OSCILLOSCOPES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Oscilloscope Probes & Accessories Catalog

PP007-WR-1

Active

Teledyne LeCroy

OSCILLOSCOPE PROBE, PASSIVE, 500 MHZ, 400 V, 10:1, OSCILLOSCOPES

Deep-Dive with AI

DocumentsDatasheet Oscilloscope Probes & Accessories Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PP007-WR-1

Attenuation Value [custom]	10:1
Bandwidth	500 MHz
Cable Length	51.181 in
Cable Length	1300 mm
Capacitance - Input	9.5 pF
Color	Black
Includes	Copper Pad, Insulating Cap, Sprung Hook, IC Caps, Adapters, Manual, Adjustment Tool, Coding Rings, Grounds, Tips
Resistance - Input	10 M
Type	Passive
Voltage - Max	300 V, 400 V

PP007 Series

Part	Cable Length	Cable Length	Type	Color	Includes	Attenuation Value [custom]	Resistance - Input	Capacitance - Input	Voltage - Max	Bandwidth
Teledyne LeCroy PP007-WR-1	51.181 in	1300 mm	Passive	Black	Adapters Adjustment Tool Coding Rings Copper Pad Grounds IC Caps Insulating Cap Manual Sprung Hook Tips	10:1	10 M	9.5 pF	300 V 400 V	500 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 355.00

Description

General part information

PP007 Series

PP007-WR-1 is a passive probe. It provides a 10:1 attenuation and feature a high input resistance of 10Mohm. This high input resistance means that passive probes are the ideal tool for low frequency signals since circuit loading at these frequencies is minimized. Passive probe is designed to handle voltages of 400V. Teledyne LeCroy passive probes feature an attenuation sense pin which tells the oscilloscope to scale the waveforms automatically requiring no user input. The sharp probe tip (rigid tip is included) is spring loaded, allowing it to retract into the narrow probe head. Recommended oscilloscope WaveRunner 6000(A), WaveRunner Xi(A) ≥ 1 GHz, WaveSurfer Xs(A) ≥ 1 GHz, WavePro 7 Zi and WaveMaster 8 Zi.
