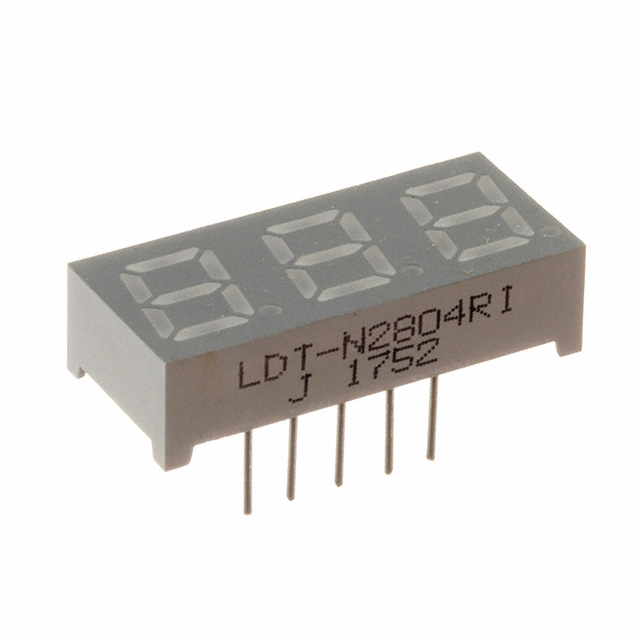

LDT-N2804RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.28" TRP RED 12DIP
Deep-Dive with AI
Search across all available documentation for this part.
LDT-N2804RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.28" TRP RED 12DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDT-N2804RI |
|---|---|
| Color | Red |
| Common Pin | Common Cathode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 7 mm |
| Digit/Alpha Size | 0.28 in |
| Display Type | 7-Segment |
| Millicandela Rating | 1.4 mcd |
| Number of Characters | 3 |
| Package / Case | 0.3 in, 11 Leads, 7.62 mm |
| Package / Case | 12-DIP |
| Power Dissipation (Max) [Max] | 105 mW |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [x] | 0.394 " |
| Size / Dimension [y] | 22.53 mm |
| Size / Dimension [y] | 0.887 in |
| Size / Dimension [z] | 6.1 mm |
| Size / Dimension [z] | 0.24 " |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.27 | |
| 22 | $ 2.31 | |||
| 110 | $ 1.89 | |||
| 506 | $ 1.59 | |||
| 1012 | $ 1.46 | |||
| 2002 | $ 1.40 | |||
| 5016 | $ 1.37 | |||
Description
General part information
LDT-N2804 Series
Display Modules - LED Character and Numeric Red 7-Segment 3 Character Common Cathode 2V 10mA 0.394" H x 0.887" W x 0.240" D (10.00mm x 22.53mm x 6.10mm) 12-DIP (0.300", 7.62mm), 11 Leads
