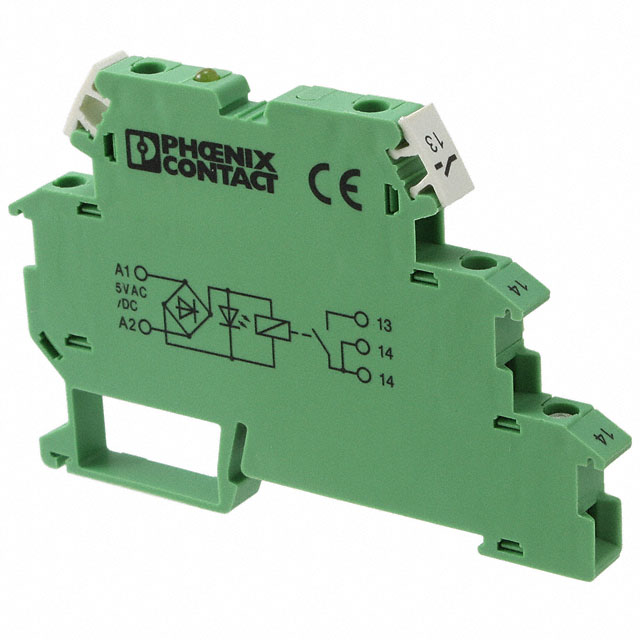

2941183

Active

Phoenix Contact

RELAY GENERAL PURPOSE SPST 3A 5V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GENERAL PURPOSE SPST 3A 5V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Form	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Termination Style	Coil Current	Mounting Type	Coil Voltage	Switching Voltage	Coil Type	Release Time	Contact Rating (Current)	Contact Material
Phoenix Contact 2941183	SPST-NO (1 Form A)	8 ms	50 °C	-20 C	General Purpose	Screw Terminal	23 mA	DIN Rail	5 VAC/DC	250 VAC 250 VDC	Non Latching	15 ms	3 A	Silver Nickel (AgNi)
Phoenix Contact 2941154	SPST-NO (1 Form A)	5 ms	50 °C	-20 C	General Purpose	Screw Terminal	6.5 mA	DIN Rail	24 VAC	250 VAC 250 VDC	Non Latching	15 ms	3 A	Silver Nickel (AgNi)
Phoenix Contact 2941170	SPST-NO (1 Form A)	8 ms	50 °C	-20 C	General Purpose	Screw Terminal	23 mA	DIN Rail	5 VAC/DC	250 VAC 250 VDC	Non Latching	15 ms	3 A	Silver Nickel (AgNi)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 5VAC/DC Coil DIN Rail
