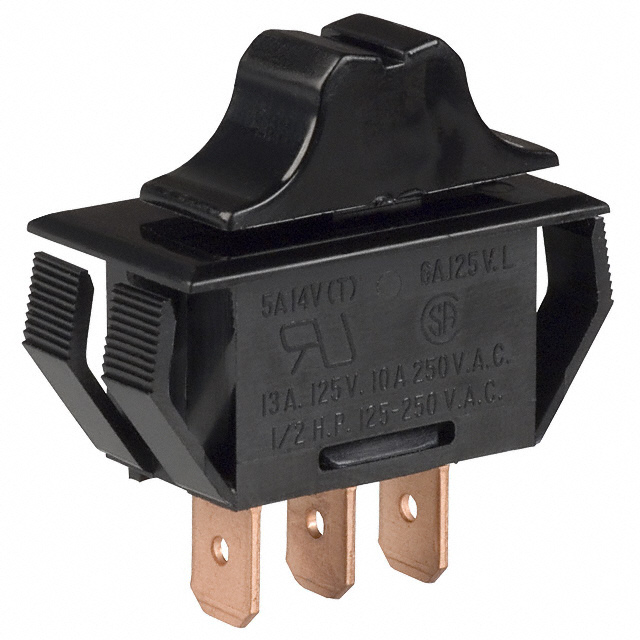

G-2012-1315
ActiveCW Industries
SWITCH SLIDE SPDT 13A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
G-2012-1315
ActiveCW Industries
SWITCH SLIDE SPDT 13A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | G-2012-1315 |
|---|---|
| Actuator Length [x] | 10.29 mm |
| Actuator Material | Nylon, Polyamide (PA) |
| Actuator Type | Standard |
| Circuit | SPDT |
| Contact Finish | Silver |
| Contact Material | Copper |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 13 A |
| Electrical Life | 25000 Steps |
| Features | Black Actuator and Housing |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.19 | |
| 10 | $ 1.16 | |||
| 25 | $ 1.05 | |||
| 100 | $ 0.91 | |||
| 250 | $ 0.84 | |||
Description
General part information
G-2012 Series
Slide Switch SPDT Panel Mount, Snap-In
Documents
Technical documentation and resources
