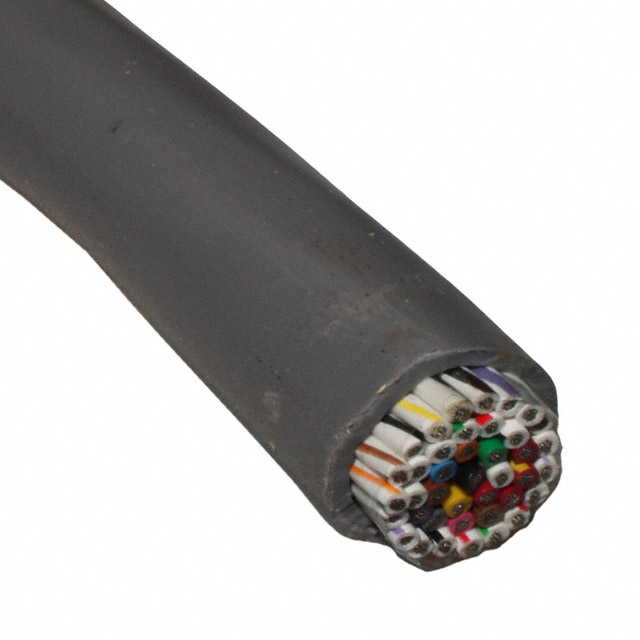

M38940 SL005

Active

ALPHA WIRE

CABLE 40COND 24AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 40COND 24AWG SLATE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M38940 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	9.88 mm
Jacket (Insulation) Diameter [diameter]	0.389 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	40
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket (Insulation) Material	Number of Conductors	Ratings	Voltage	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Cable Type	Length [x]	Length [x]	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length
ALPHA WIRE M38940 SL005	Poly-Vinyl Chloride (PVC)	40	UL Style 2464	300 V	Copper Tinned	32 AWG	7	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Slate	Multi-Conductor	30.5 m	100 ft	24 AWG	9.88 mm	0.389 in
ALPHA WIRE M38940 SL001	Poly-Vinyl Chloride (PVC)	40	UL Style 2464	300 V	Copper Tinned	32 AWG	7	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Slate	Multi-Conductor			24 AWG	9.88 mm	0.389 in	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Conductor Multi-Conductor Cable Slate 24 AWG 100.0' (30.5m)
