ICE40HX8K-B-EVN

Active

LATTICE SEMICONDUCTOR

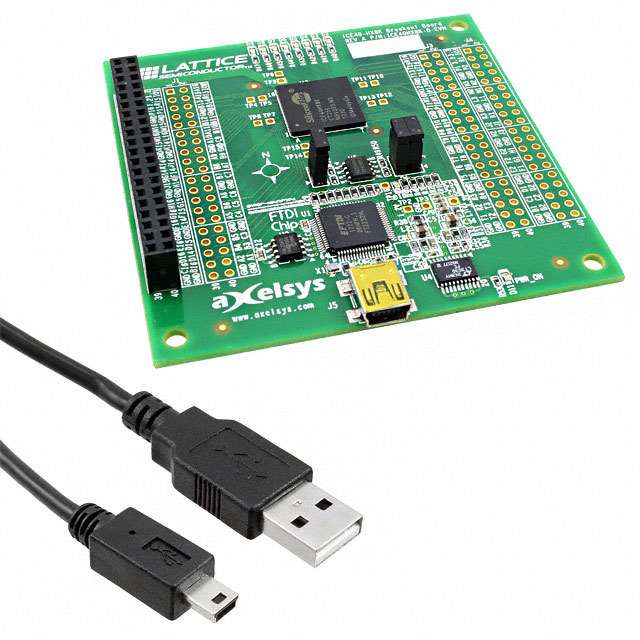

ICE40-HX8K BREAKOUT BOARD

Search across all available documentation for this part.

Active

LATTICE SEMICONDUCTOR

ICE40-HX8K BREAKOUT BOARD

Technical Specifications

Parameters and characteristics for this part

Specification	ICE40HX8K-B-EVN

Contents	Cable(s), Board(s)
Suggested Programming Environment	iCEcube2
Utilized IC / Part	iCE40HX8K

Part	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Number of LABs/CLBs	Mounting Type	Total RAM Bits	Package / Case	Number of Logic Elements/Cells	Total RAM Bits [custom]	Supplier Device Package [x]	Supplier Device Package [y]	Utilized IC / Part	For Use With/Related Products	Contents	Platform	Suggested Programming Environment
LATTICE SEMICONDUCTOR ICE40HX8K-CB132	95 I/O	100 °C	-40 C	132-CSBGA (8x8)	960	Surface Mount	131072	132-LFBGA CSPBGA	7680
LATTICE SEMICONDUCTOR ICE40LP1K-CM121TR	95 I/O	100 °C	-40 C	121-UCBGA (5x5)	160	Surface Mount			1280	65536 bits
LATTICE SEMICONDUCTOR ICE40LP1K-SWG16TR1K	10	100 °C	-40 C	16-WLCSP	160	Surface Mount		16-XFBGA WLCSP	1280	65536 bits	1.4	1.48
LATTICE SEMICONDUCTOR ICE40LM4K-S-EVN													iCE40LM4K	iCE40LM4K	Board(s) Cable(s)	iCE40 LM FPGA Sensor
LATTICE SEMICONDUCTOR ICE40LP4K-CM225	167 I/O	100 °C	-40 C	225-UCBGA (7x7)	440	Surface Mount	81920 Bits	225-VFBGA	3520
LATTICE SEMICONDUCTOR ICE40HX8K-B-EVN													iCE40HX8K		Board(s) Cable(s)		iCEcube2
LATTICE SEMICONDUCTOR ICE40HX4K-BG121TR	93	100 °C	-40 C	121-caBGA (9x9)	440	Surface Mount	81920 Bits	121-TFBGA	3520
LATTICE SEMICONDUCTOR ICE40HX1K-TQ144	96	100 °C	-40 C	144-TQFP (20x20)	160	Surface Mount		144-LQFP	1280	65536 bits
LATTICE SEMICONDUCTOR ICE40LP1K-SWG16TR	10	100 °C	-40 C	16-WLCSP	160	Surface Mount		16-XFBGA WLCSP	1280	65536 bits	1.4	1.48
LATTICE SEMICONDUCTOR ICE40LP1K-QN84	67	100 °C	-40 C	84-QFN (7x7)	160	Surface Mount		84-VFQFN Dual Rows Exposed Pad	1280	65536 bits

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 119.00

General part information

iCE40 HX FPGA Breakout iCE40HX8K iCE40™ HX FPGA Evaluation Board
