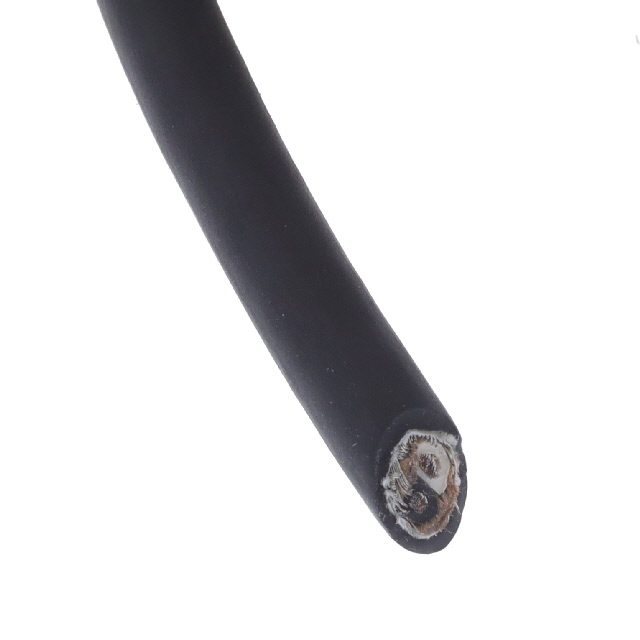

1450/16 BK005

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 16 AWG, 1.31 MM², 100 FT, 30.5 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 16 AWG, 1.31 MM², 100 FT, 30.5 M

Technical Specifications

Parameters and characteristics for this part

Specification	1450/16 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	34 AWG
Conductor Strand [custom]	65
Jacket (Insulation) Diameter [diameter]	8.31 mm
Jacket (Insulation) Diameter [diameter]	0.327 in
Jacket (Insulation) Material	Polychloroprene
Jacket (Insulation) Thickness	0.914 mm
Jacket (Insulation) Thickness	0.036 in
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Control, Communication
Voltage	600 V
Wire Gauge	16 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Number of Conductors	Shield Type	Usage	Voltage	Wire Gauge	Jacket Color	Conductor Insulation	Jacket (Insulation) Material	Conductor Material	Cable Type	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]
ALPHA WIRE 1450/16 BK001	0.914 mm	0.036 in	Copper Tinned	2	Braid	Communication Control	600 V	16 AWG	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	Polychloroprene	Copper Tinned	Multi-Conductor	85 %	34 AWG	65	1000 ft	304.8 m	8.31 mm	0.327 in	-20 C	60 °C
ALPHA WIRE 1450/16 BK005	0.914 mm	0.036 in	Copper Tinned	2	Braid	Communication Control	600 V	16 AWG	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	Polychloroprene	Copper Tinned	Multi-Conductor	85 %	34 AWG	65			8.31 mm	0.327 in	-20 C	60 °C	30.5 m	100 ft
ALPHA WIRE 1450/16 BK002	0.914 mm	0.036 in	Copper Tinned	2	Braid	Communication Control	600 V	16 AWG	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	Polychloroprene	Copper Tinned	Multi-Conductor	85 %	34 AWG	65			8.31 mm	0.327 in	-20 C	60 °C	152.4 m	500 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 783.88
Newark	Spool of 100	1	$ 1018.82

General part information

2 Conductor Multi-Conductor Cable Black 16 AWG Braid 100.0' (30.5m)
