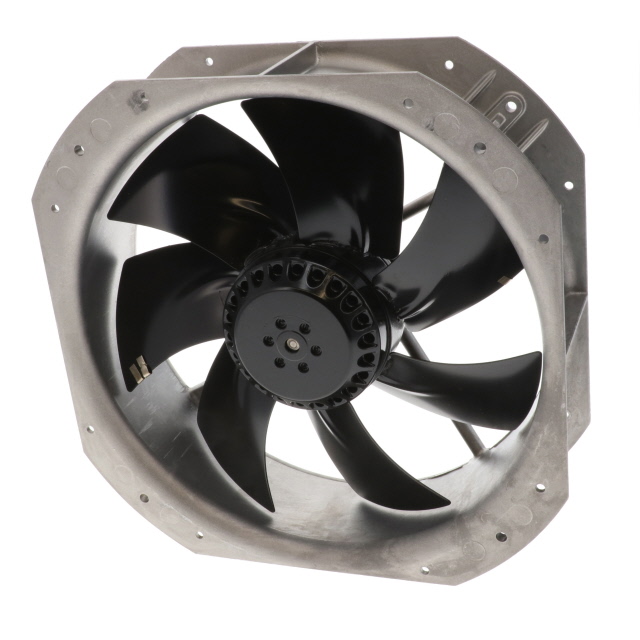

W2E250-HL06-01

Active

ebm-papst Inc.

AC FAN AXIAL 280MM X 80MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

W2E250-HL06-01

Active

ebm-papst Inc.

AC FAN AXIAL 280MM X 80MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W2E250-HL06-01

Approval Agency	CSA, UL, CCC, EAC
Bearing Type	Ball
Current Rating (Amps)	0.79 A
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protection (TOP)
Ingress Protection	IP44
Material - Blade	Steel
Material - Frame	Aluminum
Power (Watts)	180 W
RPM	2700 RPM
Size / Dimension [x]	320 mm
Size / Dimension [y]	320 mm
Static Pressure	100 Pa
Static Pressure	0.401 in H2O
Termination	4 Terminals
Voltage - Rated	230 VAC
Weight	2.8 kg
Weight	6.1 lbs
Width [y]	80 mm

W2E250 Series

Part	Current Rating (Amps)	Weight	Weight	Static Pressure	Static Pressure	Approval Agency	Termination	Features	Size / Dimension [y]	Size / Dimension [x]	RPM	Bearing Type	Material - Blade	Fan Type	Width [y]	Ingress Protection	Power (Watts)	Voltage - Rated	Material - Frame	Noise	Air Flow	Air Flow	Size / Dimension [diameter]	Size / Dimension	Termination	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]
ebm-papst Inc. W2E250-HL06-01	0.79 A	2.8 kg	6.1 lbs	100 Pa	0.401 in H2O	CCC CSA EAC UL	4 Terminals	Capacitor Thermal Overload Protection (TOP)	320 mm	320 mm	2700 RPM	Ball	Steel	Tubeaxial	80 mm	IP44	180 W	230 VAC	Aluminum
ebm-papst Inc. W2E250-CL08-70		1.4 kg	3.1 lbs			CE CSA UL						Ball	Steel	Tubeaxial	85 mm		160 W	115 VAC		71 dB(A)	30.8 m³/min	1100 CFM	320 mm	Round	2 Wire Leads
ebm-papst Inc. W2E250-DB13-52	1.49 A	3.4 kg	7.4 lbs			CSA UL				370 mm	2650 RPM	Ball	Steel	Tubeaxial	83 mm	IP44	180 W	115 VAC	Steel							370 mm
ebm-papst Inc. W2E250-CE65-02	0.74 A			130 Pa	0.522 in H2O	CE EAC		Capacitor Thermal Overload Protector (TOP)			2750 RPM	Ball	Steel	Tubeaxial	85 mm	IP44	165 W	230 VAC	Steel				320 mm	Round	4 Wire Leads with Splice Terminals		50 °C	-25 °C	-25 °C	50 °C
ebm-papst Inc. W2E250-HL08-07	1.47 A	2.8 kg	6.1 lbs			CSA UL			280 mm	280 mm	2650 RPM	Ball	Steel	Tubeaxial	80 mm	IP44	175 W	115 VAC	Aluminum						Terminal Block		30 °C	-25 °C	-25 °C	30 °C
ebm-papst Inc. W2E250-HJ32-10	1.47 A					CCC UL		Capacitor Thermal Overload Protector (TOP)	320 mm	320 mm	2850 RPM	Ball	Steel	Tubeaxial	80 mm	IP44	175 W	115 VAC	Aluminum						Terminal Block		75 ░C	-25 °C	-25 °C	75 °C
ebm-papst Inc. W2E250-CL06-70		1.4 kg	3.1 lbs			CSA UL VDE						Ball	Steel	Tubeaxial	85 mm		160 W	230 VAC		71 dB(A)	30.8 m³/min	1100 CFM	320 mm	Round	4 Wire Leads
ebm-papst Inc. W2E250-HJ28-01	0.7 A	3.2 kg	7 lbs			CE CSA UL			280 mm	280 mm	2850 RPM	Ball	Steel	Tubeaxial	80 mm	IP44	160 W	230 VAC	Aluminum	73 dB(A)	30.8 m³/min	1100 CFM			Terminal Block		55 °C	-25 °C	-25 °C	55 °C
ebm-papst Inc. W2E250-CB13-51		3.4 kg	7.4 lbs			CE CSA UL					2650 RPM	Ball	Steel	Tubeaxial	85 mm	IP44	180 W	115 VAC	Steel				320 mm	Round
ebm-papst Inc. W2E250-HJ32-01	1.42 A	3.3 kg	7.2 lbs			CCC CSA UL			280 mm	280 mm	2850 RPM	Ball	Steel	Tubeaxial	80 mm	IP44	160 W	115 VAC	Aluminum	73 dB(A)	30.8 m³/min	1100 CFM			Terminal Block		55 °C	-25 °C	-25 °C	55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 281.71
		10	$ 259.47
		25	$ 242.79

Description

General part information

W2E250 Series

Fan Tubeaxial 230VAC Square - 320mm L x 320mm H Ball 4 Terminals
