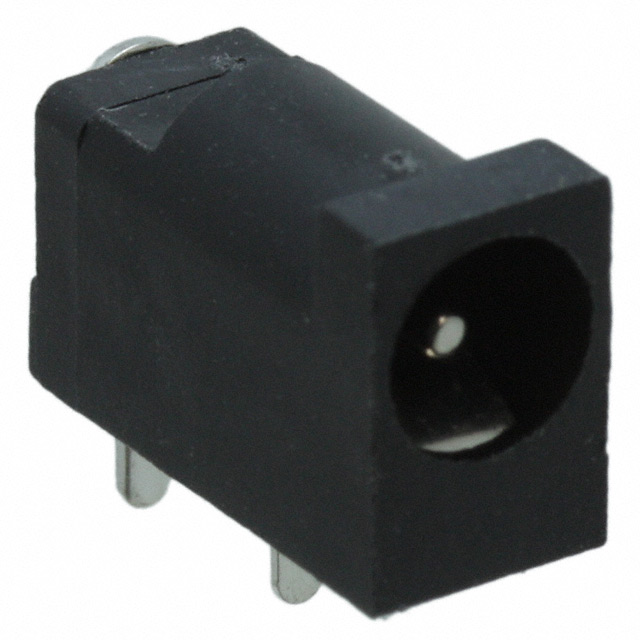

RAPC742X

Active

Switchcraft Inc.

CONN POWER JACK SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN POWER JACK SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	RAPC742X

Actual Diameter [diameter]	0.177 in, 0.039 in
Actual Diameter [diameter]	1 mm, 4.5 mm
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy
Contact Material - Plating	Tin
Current Rating (Amps)	3 A
Gender	Male
Housing Material	Thermoplastic
Internal Switch(s)	Single Switch, Normally Closed
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Shielding	Unshielded
Termination	Solder

Part	Actual Diameter [diameter]	Actual Diameter [diameter]	Connector Type	Housing Material	Gender	Body Color	Termination	Contact Material	Current Rating (Amps)	Number of Positions/Contacts	Contact Material - Plating	Internal Switch(s)	Mounting Type	Shielding
Switchcraft Inc. RAPC742X	0.039 in 0.177 in	1 mm 4.5 mm	Jack	Thermoplastic	Male	Black	Solder	Copper Alloy	3 A	2 Conductors 3 Conductors	Tin	Normally Closed Single Switch	Through Hole Right Angle	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack Through Hole, Right Angle
