F175A2-062-D0740

Obsolete

NMB TECHNOLOGIES

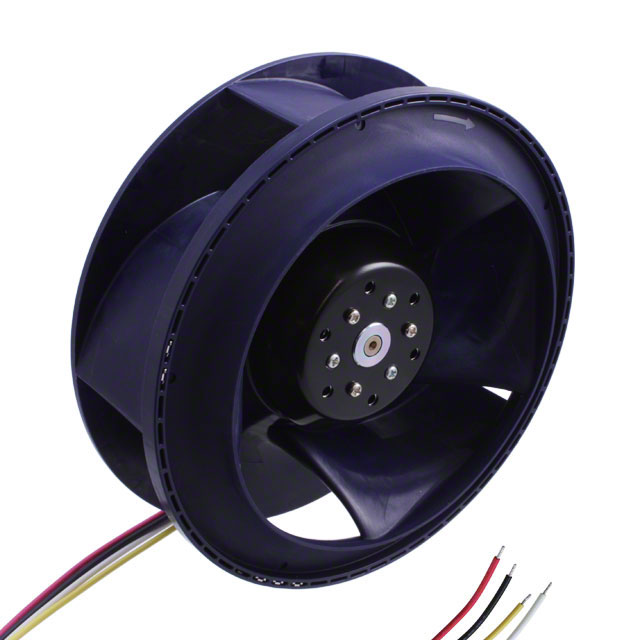

FAN IMP MTRZD 175X69.3MM 48VDC

Search across all available documentation for this part.

Obsolete

NMB TECHNOLOGIES

FAN IMP MTRZD 175X69.3MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	F175A2-062-D0740

Air Flow	442 CFM
Air Flow	12.38 m³/min
Bearing Type	Ball
Current Rating (Amps)	1.35 A
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Noise	73 dB(A)
Operating Temperature [Max] [custom]	70 °C
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-30 °C
Operating Temperature [Min] [custom]	-22 °F
Power (Watts)	64.8 W
RPM	4600 RPM
Size / Dimension [diameter]	175 mm Dia
Static Pressure	3.365 in H2O
Static Pressure	838.2 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	72 VDC
Voltage Range [Min]	30 VDC
Weight	1 kg
Weight	2.3 lbs
Width [y]	69.3 mm

Part	Power (Watts)	Fan Type	RPM	Voltage Range [Min]	Voltage Range [Max]	Noise	Width [y]	Weight	Weight	Lifetime @ Temp.	Termination	Current Rating (Amps)	Size / Dimension [diameter]	Material - Blade	Features	Operating Temperature [Min] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Max] [custom]	Voltage - Rated [custom]	Bearing Type	Static Pressure	Static Pressure	Air Flow	Air Flow
NMB TECHNOLOGIES F175A2-062-D0740	64.8 W	Motorized Impellers	4600 RPM	30 VDC	72 VDC	73 dB(A)	69.3 mm	1 kg	2.3 lbs	70000 Hrs	4 Wire Leads	1.35 A	175 mm Dia	Plastic	PWM Control Speed Sensor (Tach)	-30 °C	-22 °F	70 °C	158 °F	48 VDC	Ball	3.365 in H2O	838.2 Pa	442 CFM	12.38 m³/min

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Motorized Impellers 48VDC Round - 175mm Dia Ball 442.0 CFM (12.38m³/min) 4 Wire Leads
