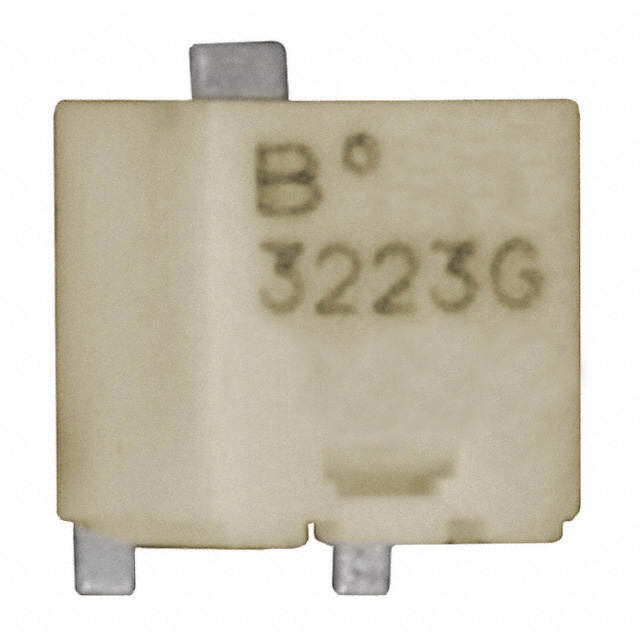

3223G-1-204E
ActiveBourns Inc.
TRIMMER 200K OHM 0.125W GW SIDE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3223G-1-204E
ActiveBourns Inc.
TRIMMER 200K OHM 0.125W GW SIDE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3223G-1-204E |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 11 |
| Power (Watts) | 0.125 W |
| Power (Watts) | 0.125 W |
| Resistance | 200000 Ohms |
| Resistive Material | Cermet |
| Size / Dimension [x] | 3.9 mm |
| Size / Dimension [x] | 0.154 " |
| Size / Dimension [y] | 3.18 mm |
| Size / Dimension [y] | 0.125 " |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | Gull Wing |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.85 | |
| 10 | $ 4.44 | |||
| 25 | $ 3.96 | |||
| 50 | $ 3.72 | |||
| 100 | $ 3.39 | |||
| 250 | $ 2.75 | |||
| Digi-Reel® | 1 | $ 4.85 | ||
| 10 | $ 4.44 | |||
| 25 | $ 3.96 | |||
| 50 | $ 3.72 | |||
| 100 | $ 3.39 | |||
| 250 | $ 2.75 | |||
| Tape & Reel (TR) | 500 | $ 2.59 | ||
| 1000 | $ 2.42 | |||
| 2500 | $ 2.26 | |||
Description
General part information
3223G Series
200 kOhms 0.125W, 1/8W Gull Wing Surface Mount Trimmer Potentiometer Cermet 11.0 Turn Side Adjustment
