09200320301ML

Active

HARTING Technology Group

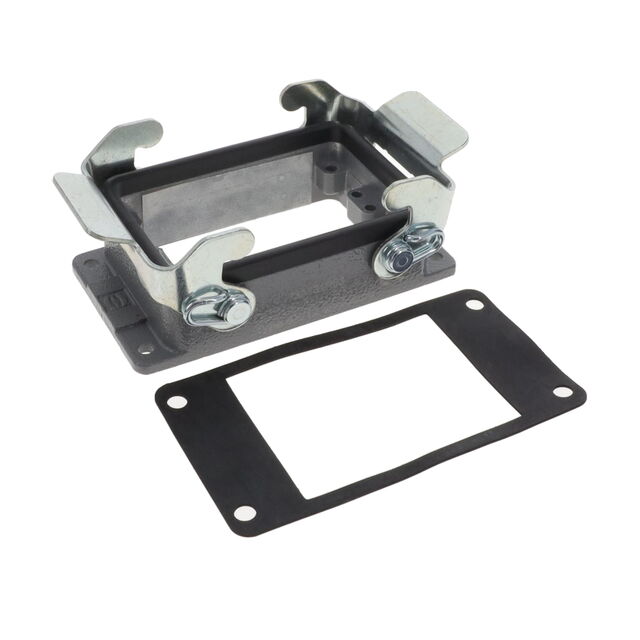

32A BULKHEAD HOUSING, DOUBLE LEVER, W/ METAL LEVERS

Search across all available documentation for this part.

Active

HARTING Technology Group

32A BULKHEAD HOUSING, DOUBLE LEVER, W/ METAL LEVERS

Technical Specifications

Parameters and characteristics for this part

Specification	09200320301ML

Connector Type	Base - Panel Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	32 A
Size / Dimension [x]	4.016 ", 102 mm
Size / Dimension [y]	56 mm, 2.205 in
Size / Dimension [z]	1.126 in, 28.6 mm
Style	Bottom Entry

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Housing Finish	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Lock Location	Style	Housing Color	Ingress Protection	Housing Material	Size
HARTING Technology Group 09200320301ML	125 °C	-40 °C	Base - Panel Mount	Powder Coated	2.205 in 56 mm	1.126 in 28.6 mm	4.016 " 102 mm	Locking Clip (2) on Base Bottom	Bottom Entry	Gray	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	32 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 32A IP65 - Dust Tight, Water Resistant
