09370241520

Active

HARTING Technology Group

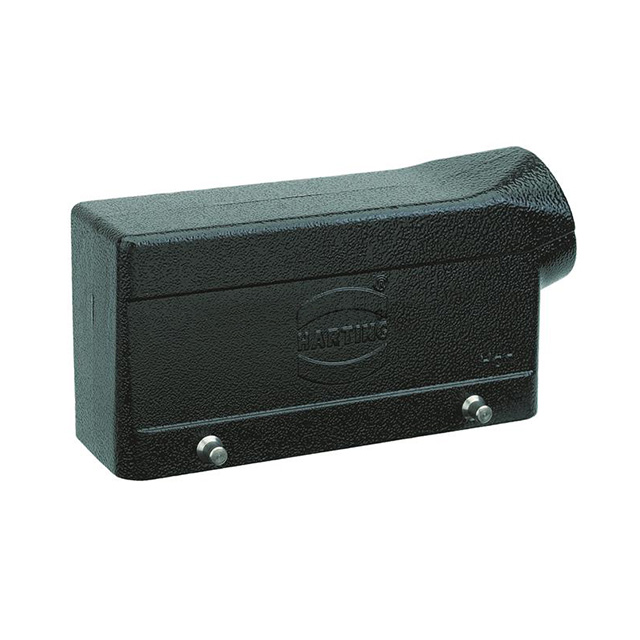

ENCLOSURE FOR CONNECTORS: HDC; SIZE 24B; FOR CABLE; HAN® M; PG21

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 24B; FOR CABLE; HAN® M; PG21

Technical Specifications

Parameters and characteristics for this part

Specification	09370241520

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.461 in
Size / Dimension [z]	62.5 mm
Style	Side Entry
Thread Size	PG21

Part	Size	Lock Location	Thread Size	Housing Material	Housing Color	Connector Type	Ingress Protection	Style	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish
HARTING Technology Group 09370241520	24 B	Locking Clip (2) on Base Bottom	PG21	Aluminum Die Cast	Black	Hood	IP65 - Dust Tight Water Resistant	Side Entry	120 mm	2.461 in	4.724 "	1.693 in	62.5 mm	43 mm	125 °C	-40 °C	Powder Coated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry PG21 24B IP65 - Dust Tight, Water Resistant
