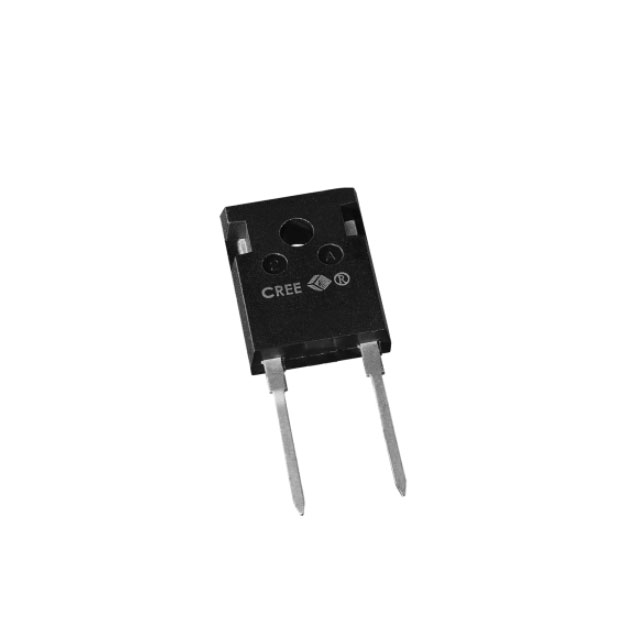

C5D25170H

Obsolete

Wolfspeed

DIODE SIL CARB 1.7KV 70A TO247-2

Search across all available documentation for this part.

Obsolete

Wolfspeed

DIODE SIL CARB 1.7KV 70A TO247-2

Technical Specifications

Parameters and characteristics for this part

Specification	C5D25170H

Capacitance @ Vr, F	1950 pF
Current - Average Rectified (Io)	70 A
Current - Reverse Leakage @ Vr	200 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-247-2
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	TO-247-2
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	1700 V
Voltage - Forward (Vf) (Max) @ If	1.8 V

Part	Package / Case	Capacitance @ Vr, F	Supplier Device Package	Mounting Type	Current - Reverse Leakage @ Vr	Speed	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Technology	Current - Average Rectified (Io)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Wolfspeed C5D25170H	TO-247-2	1950 pF	TO-247-2	Through Hole	200 µA	No Recovery Time	1.8 V	1700 V	0 ns	SiC (Silicon Carbide) Schottky	70 A	175 ░C	-55 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 1700 V 70A Through Hole TO-247-2
