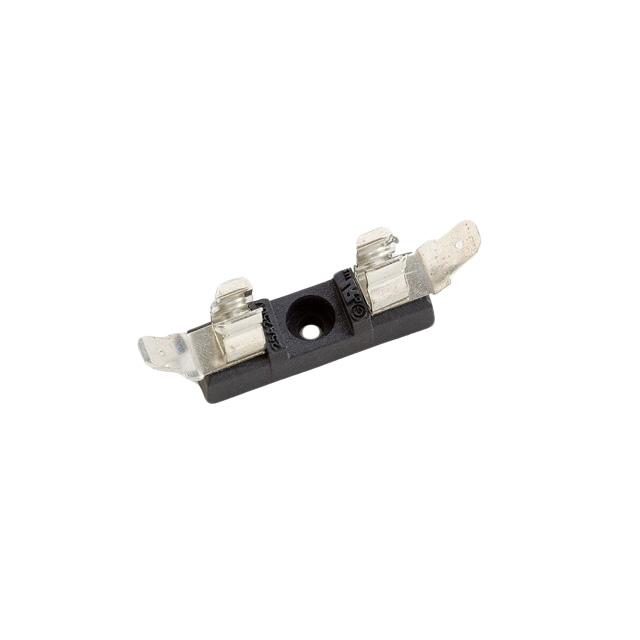

BLC-16-B2
ActiveOptiFuse
1-1/4"X1/4" BLOCK-2 PINS, SNAPIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BLC-16-B2
ActiveOptiFuse
1-1/4"X1/4" BLOCK-2 PINS, SNAPIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BLC-16-B2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 25 A |
| For Use With/Related Products | 3AG |
| Fuse Size [diameter] | 0.25 " |
| Fuse Size [diameter] | 6.35 mm |
| Fuse Size [x] | 32 mm |
| Fuse Size [x] | 1.26 in |
| Fuse Type | Cartridge |
| Fuseholder Type | Block |
| Mounting Type | Chassis Mount |
| Number of Circuits | 1 |
| Orientation | Horizontal and Vertical |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.38 | |
| 10 | $ 3.26 | |||
| 25 | $ 3.16 | |||
| 50 | $ 2.48 | |||
| 100 | $ 2.00 | |||
| 250 | $ 1.94 | |||
| 500 | $ 1.64 | |||
| 1000 | $ 1.51 | |||
Description
General part information
BLC-16 Series
Fuse Block 25 A 250V 1 Circuit Cartridge Chassis Mount
