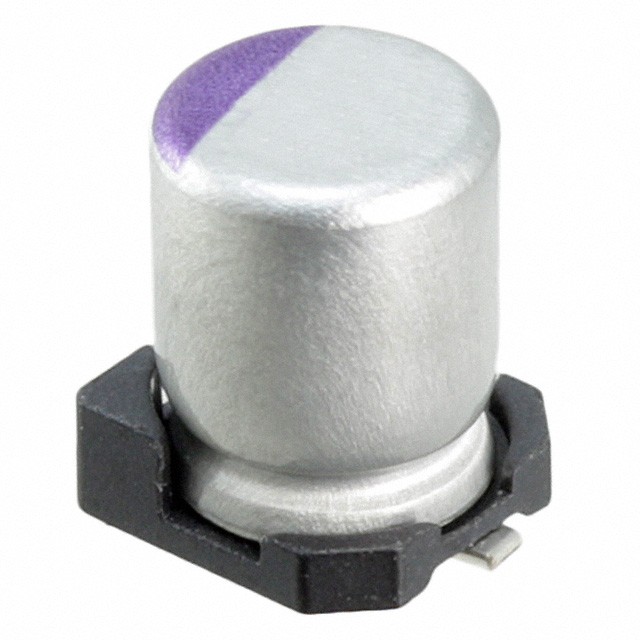

10SVP10M

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 10UF 20% 10V SMD

Deep-Dive with AI

Search across all available documentation for this part.

10SVP10M

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 10UF 20% 10V SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10SVP10M

Applications	General Purpose
Capacitance	10 µF
ESR (Equivalent Series Resistance)	220 mOhms
Height - Seated (Max) [Max]	0.217 in
Height - Seated (Max) [Max]	5.5 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	700 mA
Ripple Current @ Low Frequency	35 mA
Size / Dimension [diameter]	4 mm
Size / Dimension [diameter]	0.157 in
Surface Mount Land Size [x]	4.3 mm
Surface Mount Land Size [x]	0.169 in
Surface Mount Land Size [y]	0.169 "
Surface Mount Land Size [y]	4.3 mm
Tolerance	20 %
Type	Polymer
Voltage - Rated	10 V

10SVP Series

Part	Applications	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Lifetime @ Temp.	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	ESR (Equivalent Series Resistance)	Type	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 10SVP150M	General Purpose	10.3 mm	0.406 in	10.3 mm	0.406 "	2000 Hrs	150 µF	8 mm	0.315 in	Radial Can - SMD	151 mA	105 ░C	-55 °C	Surface Mount	3.02 A	10 mm	0.394 in	20 %	30 mOhms	Polymer	10 V
Panasonic Industrial Automation Sales 10SVP33M	General Purpose	5.3 mm	0.209 in	5.3 mm	0.209 in	2000 Hrs	33 ÁF			Radial Can - SMD		105 ░C	-55 °C	Surface Mount	1.1 A	5 mm	0.197 "	20 %	70 mOhms	Polymer	10 V	0.236 in	6 mm
Panasonic Industrial Automation Sales 10SVP6R8M	General Purpose	4.3 mm	0.169 in	4.3 mm	0.169 "	2000 Hrs	6.8 ÁF			Radial Can - SMD	33.5 mA	105 ░C	-55 °C	Surface Mount		4 mm	0.157 in	20 %	240 mOhm	Polymer	10 V	0.217 in	5.5 mm
Panasonic Industrial Automation Sales 10SVP4R7M	General Purpose	4.3 mm	0.169 in	4.3 mm	0.169 "	2000 Hrs	4.7 µF			Radial Can - SMD	33.5 mA	105 ░C	-55 °C	Surface Mount		4 mm	0.157 in	20 %	240 mOhm	Polymer	10 V	0.217 in	5.5 mm
Panasonic Industrial Automation Sales 10SVP10M	General Purpose	4.3 mm	0.169 in	4.3 mm	0.169 "	2000 Hrs	10 µF			Radial Can - SMD	35 mA	105 ░C	-55 °C	Surface Mount	700 mA	4 mm	0.157 in	20 %	220 mOhms	Polymer	10 V	0.217 in	5.5 mm
Panasonic Industrial Automation Sales 10SVP47M	General Purpose	6.6 mm	0.26 in	6.6 mm	0.26 in	2000 Hrs	47 µF			Radial Can - SMD	81 mA	105 ░C	-55 °C	Surface Mount	1.62 A	6.3 mm	0.248 in	20 %	50 mOhms	Polymer	10 V	0.236 in	6 mm
Panasonic Industrial Automation Sales 10SVP330MX	General Purpose	10.3 mm	0.406 in	10.3 mm	0.406 "	2000 Hrs	330 µF	8 mm	0.315 in	Radial Can - SMD	185 mA	105 ░C	-55 °C	Surface Mount	3.7 A	10 mm	0.394 in	20 %	25 mOhm	Polymer	10 V
Panasonic Industrial Automation Sales 10SVP560M	General Purpose	10.3 mm	0.406 in	10.3 mm	0.406 "	2000 Hrs	560 µF	12.7 mm	0.5 in	Radial Can - SMD	261.5 mA	105 ░C	-55 °C	Surface Mount	5.23 A	10 mm	0.394 in	20 %	13 mOhms	Polymer	10 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.85
		10	$ 0.66
		50	$ 0.60
		100	$ 0.54
		500	$ 0.50
		1000	$ 0.44
	Digi-Reel®	1	$ 0.85
		10	$ 0.66
		50	$ 0.60
		100	$ 0.54
		500	$ 0.50
		1000	$ 0.44
	Tape & Reel (TR)	2000	$ 0.41
		4000	$ 0.40
		6000	$ 0.38
		10000	$ 0.38

Description

General part information

10SVP Series

10 µF 10 V Aluminum - Polymer Capacitors Radial, Can - SMD 220mOhm 2000 Hrs @ 105°C
