09365062602

Active

HARTING Technology Group

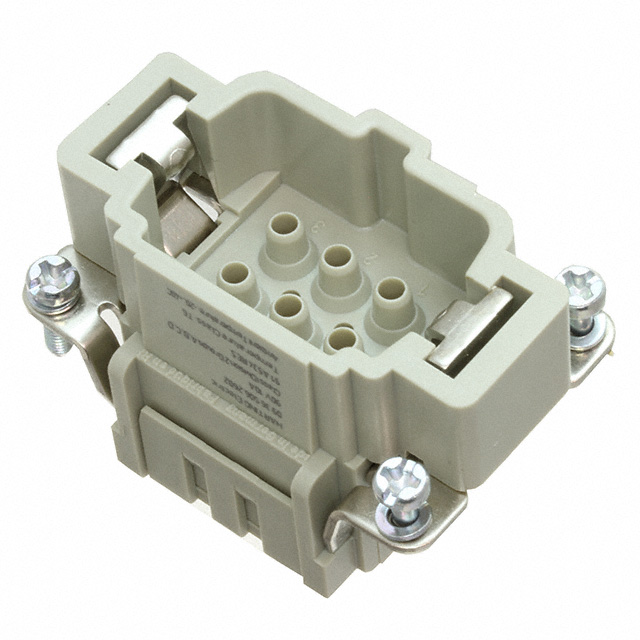

HEAVY DUTY CONNECTOR, HAN EX SERIES, INSERT, 5+PE CONTACTS, 6B, PLUG

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN EX SERIES, INSERT, 5+PE CONTACTS, 6B, PLUG

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Voltage Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Positions	Contact Type	Gender	Termination Style	Housing Material	Size	Material Flammability Rating	Contact Finish	Contact Material
HARTING Technology Group 09365062702	16 A	90 V	Insert without Contacts	-20 C	40 °C	Gray	6+Ground	Han® E	Female	Crimp	Polycarbonate (PC)	6B
HARTING Technology Group 09365062701	16 A	90 V		-20 C	40 °C	Gray	6+Ground		Female	Screw	Polycarbonate (PC)	6B	UL94 V-0	Silver	Copper Alloy
HARTING Technology Group 09365062601	16 A	90 V		-20 C	40 °C	Gray	6+Ground		Male	Screw	Polycarbonate (PC)	6B	UL94 V-0	Silver	Copper Alloy
HARTING Technology Group 09365062602	16 A	90 V	Insert without Contacts	-20 C	40 °C	Gray	6+Ground	Han® E	Male	Crimp	Polycarbonate (PC)	6B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 6+Ground Position Crimp
