M13192 SL005

Active

ALPHA WIRE

MULTI-PAIR 6CON 24AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 6CON 24AWG SLATE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M13192 SL005

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.227 in
Jacket (Insulation) Diameter [diameter]	5.77 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	24 AWG

Part	Shield Material	Length [x]	Length [x]	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Voltage	Conductor Material	Cable Type	Jacket (Insulation) Material	Shield Type	Wire Gauge	Jacket Color	Ratings	Shield Coverage
ALPHA WIRE M13192 SL005	Aluminum	30.5 m	100 ft	Poly-Vinyl Chloride (PVC)	32 AWG	7	0.227 in	5.77 mm	-20 C	80 C	6	300 V	Copper Tinned	Multi-Pair	Poly-Vinyl Chloride (PVC)	Foil	24 AWG	Slate	UL Style 2464	100 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

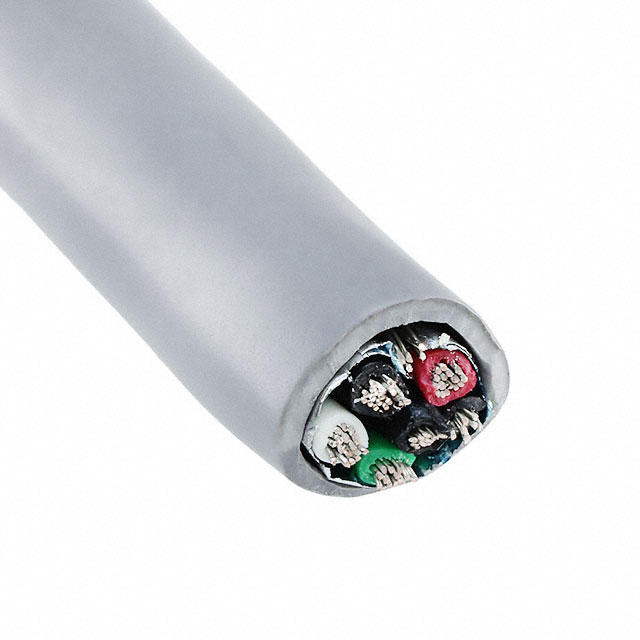

6 (3 Pair Twisted) Conductor Multi-Pair Cable Slate 24 AWG Foil 100.0' (30.5m)
