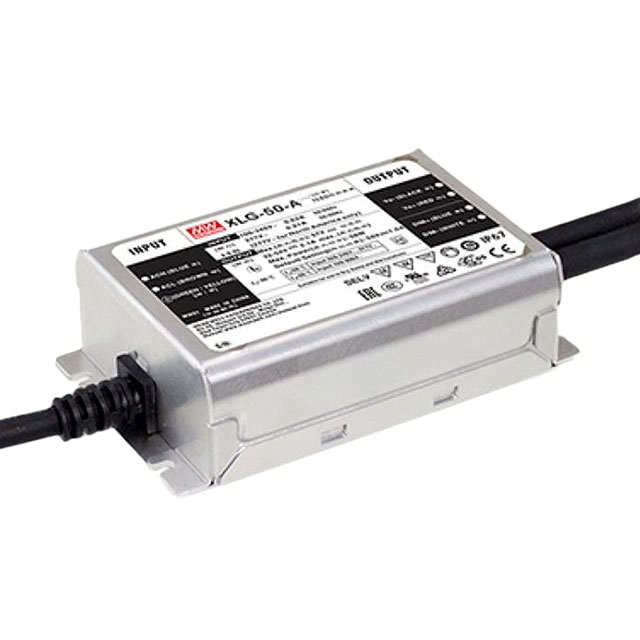

XLG-50-A
ActiveMEAN WELL USA Inc.
50W CONSTANT POWER MODE LED DRIV
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLG-50-A
ActiveMEAN WELL USA Inc.
50W CONSTANT POWER MODE LED DRIV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLG-50-A |
|---|---|
| Approval Agency | cURus, ENEC, CB, CCC, CE, RCM |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | 90 % |
| Features | OTP, OVP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 50 W |
| Ratings | IP67 |
| Size / Dimension [x] | 3.54 in |
| Size / Dimension [x] | 90 mm |
| Size / Dimension [y] | 2.48 in |
| Size / Dimension [y] | 63 mm |
| Size / Dimension [z] | 30 mm |
| Size / Dimension [z] | 1.18 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 54 V |
| Voltage - Output [Min] | 22 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.00 | |
| 5 | $ 19.00 | |||
| 10 | $ 18.48 | |||
Description
General part information
XLG-50 Series
1A 22 ~ 54V Constant Current LED Driver AC DC Converter Topology 1 Output
