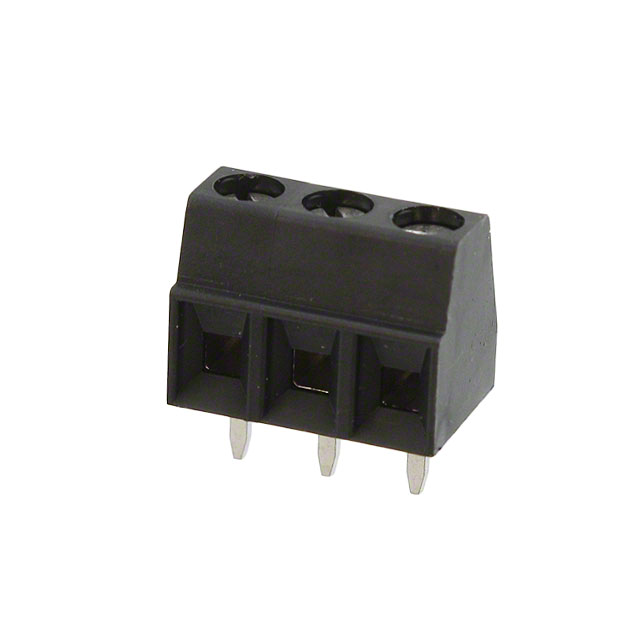

FIXED TERMINAL BLOCKS MKDS 1/3-3.81 HT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1985836

Active

Phoenix Contact

FIXED TERMINAL BLOCKS MKDS 1/3-3.81 HT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1985836

Color	Black
Current	10 A
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	3
Screw Thread	M2
Torque - Screw [Max]	2.2 Lb-In
Torque - Screw [Max]	0.25 Nm
Torque - Screw [Min]	0.22 Nm
Torque - Screw [Min]	1.9 Lb-In
Voltage	300 V
Wire Gauge [Max]	30 AWG
Wire Gauge [Min]	16 AWG
Wire Termination	Screw - Rising Cage Clamp

MKDS Series

Fixed Terminal Blocks MKDS 1/ 2-3 81 SMD B

Part	Mating Orientation	Mounting Type	Features	Wire Gauge [Max]	Wire Gauge [Min]	Housing Material	Wire Termination	Positions Per Level	Voltage	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Max]	Torque - Screw [Min]	Color	Screw Thread	Current	Pitch [x]	Pitch [x]	Number of Levels
Phoenix Contact 1709759	Horizontal with Board	Through Hole	Interlocking (Side)	20 AWG	6 AWG	Polyamide (PA) Nylon	Screw - Rising Cage Clamp	9	600 V	1.5 Nm	1.2 Nm	13.3 Lb-In	10.6 Lb-In	Green	M4	60 A	10.16 mm	0.4 in	1
Phoenix Contact 1727230	Horizontal with Board	Surface Mount		30 AWG	16 AWG	Polyamide (PA) Nylon Glass Filled	Screw - Rising Cage Clamp	2	300 V	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	Black	M2	10 A	3.81 mm	0.15 in	1
Phoenix Contact 1709717	Horizontal with Board	Through Hole	Interlocking (Side)	20 AWG	6 AWG	Polyamide (PA) Nylon	Screw - Rising Cage Clamp	5	600 V	1.5 Nm	1.2 Nm	13.3 Lb-In	10.6 Lb-In	Green	M4	60 A	10.16 mm	0.4 in	1
Phoenix Contact 1905201	Horizontal with Board	Through Hole	Interlocking (Side)	30 AWG	12 AWG	Polyamide (PA) Nylon	Screw - Rising Cage Clamp	5	300 V	0.6 Nm	0.5 Nm	5.3 Lb-In	4.4 Lb-In	Green	M3	15 A	5.08 mm	0.2 in	1
Phoenix Contact 1751332	Horizontal with Board	Through Hole		30 AWG	16 AWG	Polyamide (PA) Nylon	Screw - Rising Cage Clamp	11	300 V	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	Green	M2	10 A	3.5 mm	0.138 in	1
Phoenix Contact 1751264	Horizontal with Board	Through Hole		30 AWG	16 AWG	Polyamide (PA) Nylon	Screw - Rising Cage Clamp	4	300 V	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	Green	M2	10 A	3.5 mm	0.138 in	1
Phoenix Contact 1985836	Horizontal with Board	Through Hole		30 AWG	16 AWG	Polyamide (PA) Nylon	Screw - Rising Cage Clamp	3	300 V	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	Black	M2	10 A	3.81 mm	0.15 in	1
Phoenix Contact 1712708	Horizontal with Board	Through Hole	Interlocking (Side)	30 AWG	12 AWG	Polyamide (PA) Nylon	Screw - Rising Cage Clamp	8	300 V	0.6 Nm	0.5 Nm	5.3 Lb-In	4.4 Lb-In	Green	M3	15 A	5.08 mm	0.2 in	1
Phoenix Contact 1985975	Horizontal with Board	Through Hole	Interlocking (Side)	30 AWG	12 AWG	Polyamide (PA) Nylon	Screw - Rising Cage Clamp	3	300 V	0.6 Nm	0.5 Nm	5.3 Lb-In	4.4 Lb-In	Black	M3	15 A	5 mm	0.197 in	1
