19302160291

Active

HARTING Technology Group

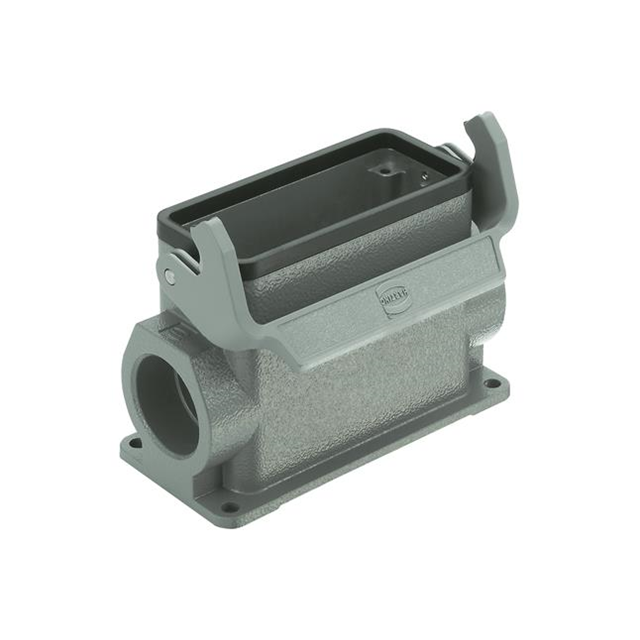

16B SURFACE MOUNT HOUSING, SINGLE LEVER, HIGH CONSTRUCTION, 2XM25 - HIGH MATING CYCLE VERSION

Search across all available documentation for this part.

Active

HARTING Technology Group

16B SURFACE MOUNT HOUSING, SINGLE LEVER, HIGH CONSTRUCTION, 2XM25 - HIGH MATING CYCLE VERSION

Technical Specifications

Parameters and characteristics for this part

Specification	19302160291

Connector Type	Base - Box Mount
Features	Feed Through
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	4.606 "
Size / Dimension [x]	117 mm
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	3.181 "
Size / Dimension [z]	80.8 mm
Style	Side Entry, Dual
Thread Size	M25

Part	Housing Color	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Connector Type	Size	Housing Material	Lock Location	Ingress Protection	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Style
HARTING Technology Group 19302160291	Gray	M25	125 °C	-40 °C	Powder Coated	Base - Box Mount	16 B	Aluminum Die Cast	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	Feed Through	2.244 "	4.606 "	3.181 "	117 mm	57 mm	80.8 mm	Side Entry Dual

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry, Dual M25 16B IP65 - Dust Tight, Water Resistant
