MW172KB1803B01
SL POWER / Advanced Energy

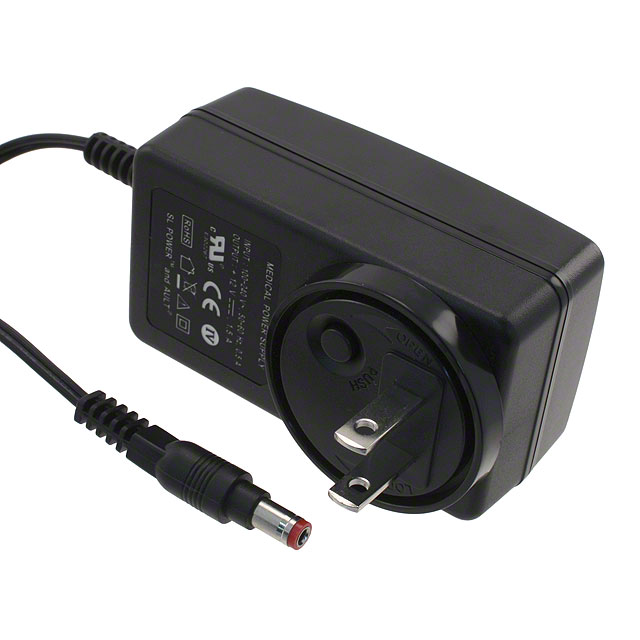

AC/DC WALL MOUNT ADAPTER 18V 18W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MW172KB1803B01
SL POWER / Advanced Energy
AC/DC WALL MOUNT ADAPTER 18V 18W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MW172KB1803B01 |
|---|---|
| Applications | Medical |
| Approval Agency | cULus, CE |
| Cord Length | 70.9 in |
| Cord Length | 1.8 m |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | Level IV |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P, Multi-Blade |
| Input Type | Multi-Blade, Fixed Blade |
| No Load Power Consumption | 500 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 18 W |
| Region Utilized | North America |
| Size / Dimension [x] | 84.6 mm |
| Size / Dimension [x] | 3.3 " |
| Size / Dimension [y] | 46 mm |
| Size / Dimension [y] | 1.81 in |
| Size / Dimension [z] | 33 mm |
| Size / Dimension [z] | 1.26 in |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 250 | $ 16.12 | |
Description
General part information
MW172KB1803 Series
18V 18 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade, Multi-Blade (Sold Separately) Input
