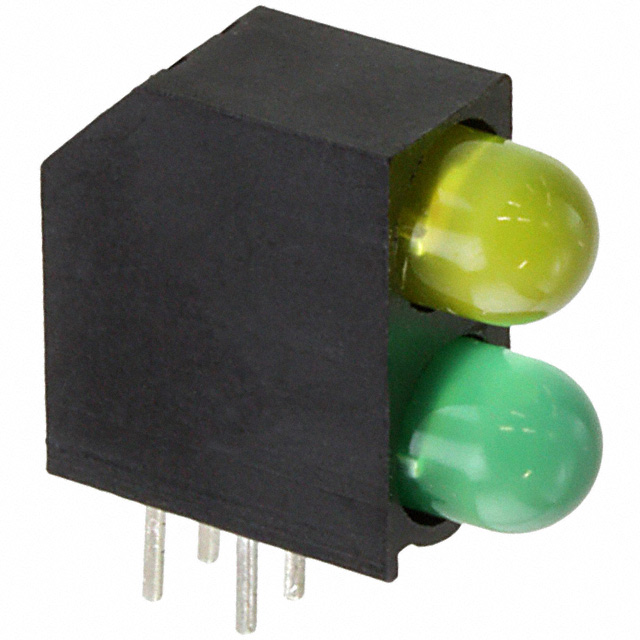

5520232F

Active

DIALIGHT

YELLOW,EMERALD PLUGIN LED INDICATION - DISCRETE ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5520232F

Active

DIALIGHT

YELLOW,EMERALD PLUGIN LED INDICATION - DISCRETE ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5520232F

Color	Green (x 1), Yellow (x 1)
Configuration	2 High
Current	20 mA, 25 mA
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Type	Diffused
Millicandela Rating	8 mcd, 10 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °
Voltage Rating	2.1 V, 2 V
Wavelength - Peak	563 nm, 583 nm

5520232 Series

Part	Current	Wavelength - Peak	Lens Size	Lens Size	Millicandela Rating	Lens Style	Viewing Angle	Configuration	Color	Lens Type	Voltage Rating	Mounting Type
DIALIGHT 5520232F	20 mA 25 mA	563 nm 583 nm	T-1 3/4	5 mm	8 mcd 10 mcd	Round with Domed Top	60 °	2 High	Green (x 1) Yellow (x 1)	Diffused	2 V 2.1 V	Through Hole Right Angle
DIALIGHT 5520232802F			T-1 3/4	5 mm		Round with Domed Top						Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.48
		10	$ 1.62
		100	$ 1.18
		500	$ 1.01
		1000	$ 0.96
		2000	$ 0.91
		5000	$ 0.87
		10000	$ 0.84
LCSC	Piece	1	$ 2.23
		200	$ 0.89
		500	$ 0.86
		1000	$ 0.84

Description

General part information

5520232 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1 ), Yellow (x 1) Diffused 2.1V Green, 2V Yellow 25mA Green, 20mA Yellow Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
