903-367P-51A2

Active

Amphenol RF

CONN SMB 0HZ TO 4GHZ 50OHM CRIMP RA CABLE MOUNT PL GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMB 0HZ TO 4GHZ 50OHM CRIMP RA CABLE MOUNT PL GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	903-367P-51A2

Body Finish	Nickel
Body Material	Zinc Alloy
Cable Group	RG-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms

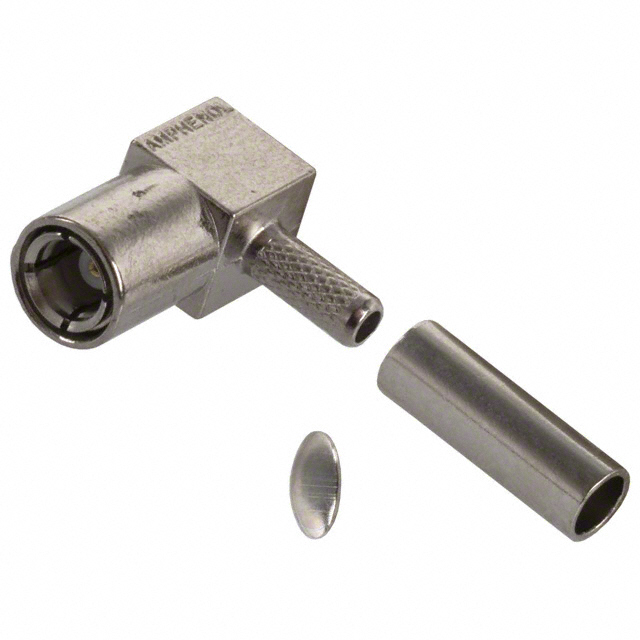

Includes	1 Connector, 1 Ferrule, 1 End Cap
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Shield Termination	Insertion Loss	Frequency - Max [Max]	Fastening Type	Center Contact Material	Number of Ports	Body Finish	Includes	Dielectric Material	Connector Style	Center Contact Plating	Mating Cycles	Contact Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Body Material	Mounting Type	Impedance	Cable Group
Amphenol RF 903-367P-51A2	Crimp	0.6 dB	4 GHz	Snap-On	Beryllium Copper	1	Nickel	1 Connector 1 End Cap 1 Ferrule	Polytetrafluoroethylene (PTFE)	SMB	Gold	500	Solder	Female Socket Plug	-65 ░C	165 °C	Silver	Zinc Alloy	Free Hanging (In-Line) Right Angle	50 Ohms	RG-316

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
