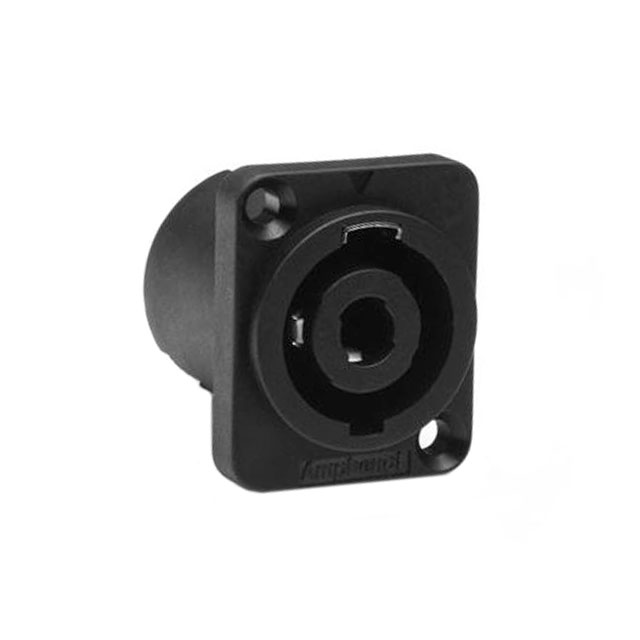

SP-4-MD

Active

AMPHENOL AUDIO

CONN CIRC RCPT 4P SOLDER TABS

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN CIRC RCPT 4P SOLDER TABS

Technical Specifications

Parameters and characteristics for this part

Specification	SP-4-MD

Connector Type	Receptacle, Non-Gendered
Contact Finish - Mating	Silver
Current Rating (Amps)	30 A
Fastening Type	Latch Holder
Ingress Protection	IP54 - Dust Protected, Water Resistant
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Termination	Solder Tabs

Part	Primary Material	Orientation	Fastening Type	Mounting Feature	Contact Finish - Mating	Termination	Shell Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Connector Type	Number of Positions
AMPHENOL AUDIO SP-4-MD	Plastic	Keyed	Latch Holder	Flange	Silver	Solder Tabs	Polyamide (PA66) Nylon 6/6 Glass Filled	IP54 - Dust Protected Water Resistant	-25 °C	75 ░C	30 A	Receptacle Non-Gendered	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Non-Gendered Solder Tabs
