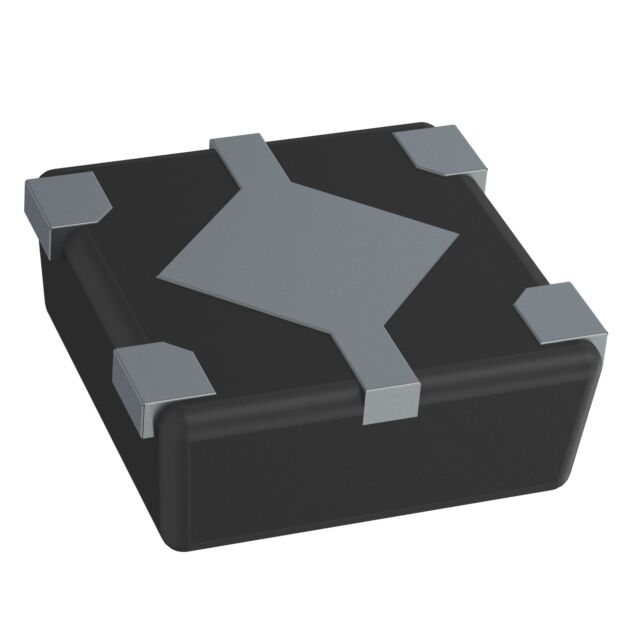

S-1317A18-A4T2U4

Active

ABLIC Inc.

IC REG LIN 1.8V 100MA HSNT-4-B

Search across all available documentation for this part.

Active

ABLIC Inc.

IC REG LIN 1.8V 100MA HSNT-4-B

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Package / Case	Output Configuration	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	Number of Regulators	Current - Output	Supplier Device Package	Protection Features	Voltage Dropout (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed) [Min]
ABLIC Inc. S-1317A25-M5T1U4	1.81 mOhm	SC-74A SOT-753	Positive	2.5 V	530 nA	1	100 mA	SOT-23-5	Over Current	0.03 V	85 °C	-40 °C	Surface Mount	5.5 V
ABLIC Inc. S-1317A23-M5T1U4	1.81 mOhm	SC-74A SOT-753	Positive		530 nA	1	100 mA	SOT-23-5	Over Current	0.04 V	85 °C	-40 °C	Surface Mount	5.5 V	2.3 V
ABLIC Inc. S-1317A27-M5T1U4	1.81 mOhm	SC-74A SOT-753	Positive	2.7 V	530 nA	1	100 mA	SOT-23-5	Over Current	0.03 V	85 °C	-40 °C	Surface Mount	5.5 V
ABLIC Inc. S-1317A10-A4T2U4	1.81 mOhm	4-SMD Flat Leads Exposed Pad	Positive	1 V	530 nA	1	100 mA	HSNT-4-B	Over Current		85 °C	-40 °C	Surface Mount	5.5 V
ABLIC Inc. S-1317A25-A4T2U4	1.81 mOhm	4-SMD Flat Leads Exposed Pad	Positive	2.5 V	530 nA	1	100 mA	HSNT-4-B	Over Current	0.03 V	85 °C	-40 °C	Surface Mount	5.5 V
ABLIC Inc. S-1317A18-A4T2U4	1.81 mOhm	4-SMD Flat Leads Exposed Pad	Positive	1.8 V	530 nA	1	100 mA	HSNT-4-B	Over Current	0.05 V	85 °C	-40 °C	Surface Mount	5.5 V
ABLIC Inc. S-1317A12-M5T1U4	1.81 mOhm	SC-74A SOT-753	Positive	1.2 V	530 nA	1	100 mA	SOT-23-5	Over Current		85 °C	-40 °C	Surface Mount	5.5 V
ABLIC Inc. S-1317A18-M5T1U4	1.81 mOhm	SC-74A SOT-753	Positive	1.8 V	530 nA	1	100 mA	SOT-23-5	Over Current	0.05 V	85 °C	-40 °C	Surface Mount	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 100mA HSNT-4-B

Technical documentation and resources
