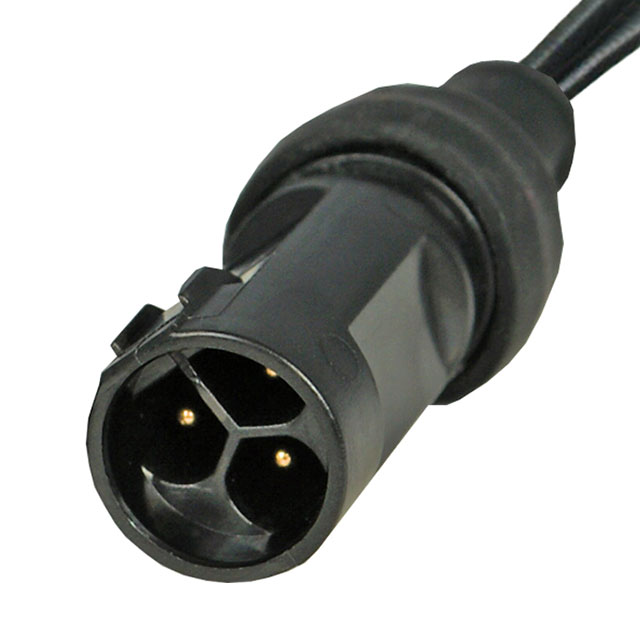

SK6-016M03

Active

Anderson Power Products, Inc.

CONN PLG HSG FMALE 3POS INLINE

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

CONN PLG HSG FMALE 3POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	SK6-016M03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Latch Lock
Features	Backshell
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Material	Polycarbonate (PC)
Shell Size - Insert	16-3
Shielding	Unshielded
Type	For Female Sockets

Part	Shell Size - Insert	Housing Color	Ingress Protection	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insert Material	Type	Contact Shape	Note	Connector Type	Number of Positions	Mounting Type	Features	Shielding	Fastening Type	Material Flammability Rating	Orientation
Anderson Power Products, Inc. SK6-016M03	16-3	Black	IP68 - Dust Tight Waterproof	Polycarbonate (PC)	-20 C	105 ░C	Crimp	Polycarbonate (PC)	For Female Sockets	Circular	Contacts Not Included	Plug Housing	3	Free Hanging (In-Line)	Backshell	Unshielded	Latch Lock	UL94 V-0	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (Power) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell
