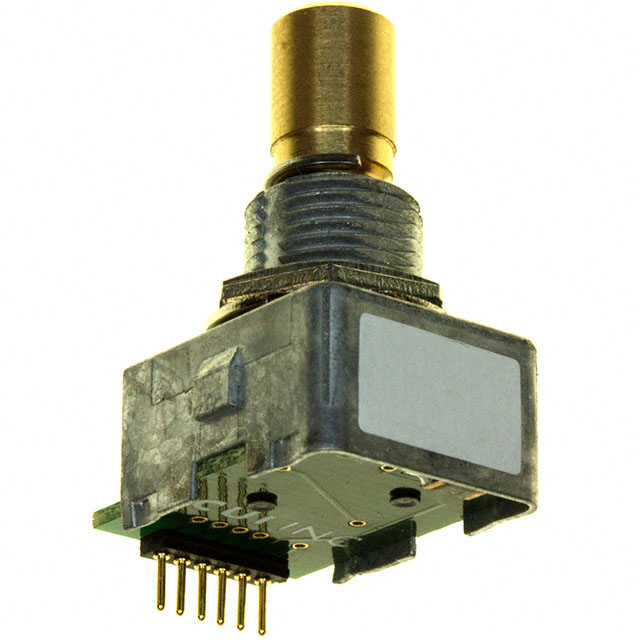

C14N32P-C2

Active

CUI Devices

ROTARY ENCODER OPTICAL 32PPR

Search across all available documentation for this part.

Active

CUI Devices

ROTARY ENCODER OPTICAL 32PPR

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Termination Style	Orientation	Actuator Type	Actuator Type	Encoder Type	Rotational Life (Cycles Min)	Output Type	Pulses per Revolution
CUI Devices C14N32P-C3	Panel PCB Through Hole	PC Pin	Vertical	0.25	Flatted End	Optical	1M	Quadrature (Incremental)
CUI Devices C14N32P-C2	Panel PCB Through Hole	PC Pin	Vertical		6mm Dia Round End	Optical	1M	Quadrature (Incremental)
CUI Devices C14N32P-A2		Solder Lug	Right Angle		6mm Dia Round End	Optical	1M	Quadrature (Incremental)
CUI Devices C14N32P-B3		Cable with Connector	Right Angle	0.25	Flatted End	Optical	1M	Quadrature (Incremental)	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	250	$ 17.12

General part information

Rotary Encoder Optical 32 Quadrature (Incremental) Vertical

Technical documentation and resources
