1525A 0101000

Active

Belden Inc.

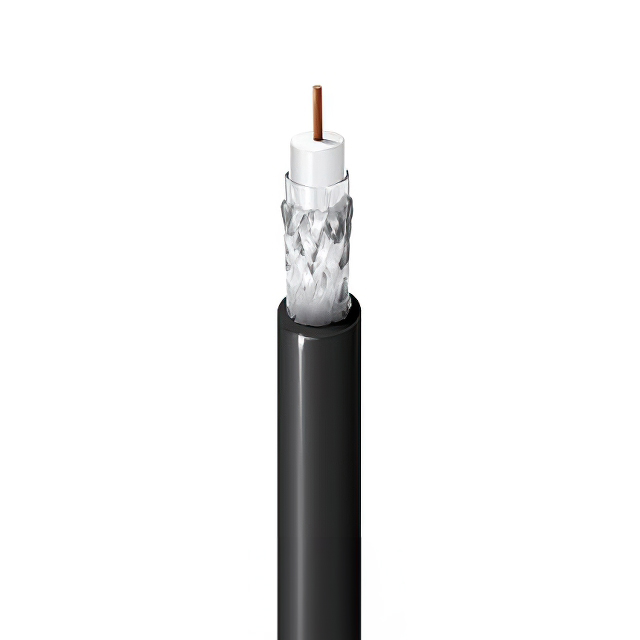

CABLE COAXIAL RG-11 14AWG 1000'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE COAXIAL RG-11 14AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1525A 0101000

Cable Group	RG-11
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.28 in
Dielectric Diameter [diameter]	7.11 mm
Dielectric Material	Foam Polyethylene (FPE)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	9.98 mm
Jacket (Insulation) Diameter [diameter]	0.393 in
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-50 °C
Shield Coverage	60%, 100%
Shield Material	Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	83
Wire Gauge	13.5 AWG

Part	Length	Length	Jacket Color	Cable Type	Conductor Material	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Shield Material	Dielectric Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Strand	Wire Gauge	Impedance	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	VoP, Velocity of Propagation	Shield Coverage
Belden Inc. 1525A 0031000	304.8 m	1000 ft	Orange	Coaxial	Copper Coated Steel	RG-11	-50 °C	80 C	Braid Foil	Aluminum	Foam Polyethylene (FPE)	0.28 in	7.11 mm	Solid	13.5 AWG	75 Ohms	Polyethylene (PE)	9.98 mm	0.393 in	83	100% 60%
Belden Inc. 1525A 0101000	304.8 m	1000 ft	Black	Coaxial	Copper Coated Steel	RG-11	-50 °C	80 C	Braid Foil	Aluminum	Foam Polyethylene (FPE)	0.28 in	7.11 mm	Solid	13.5 AWG	75 Ohms	Polyethylene (PE)	9.98 mm	0.393 in	83	100% 60%

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Cable 14 AWG RG-11 1000.0' (304.80m) 75 Ohms
