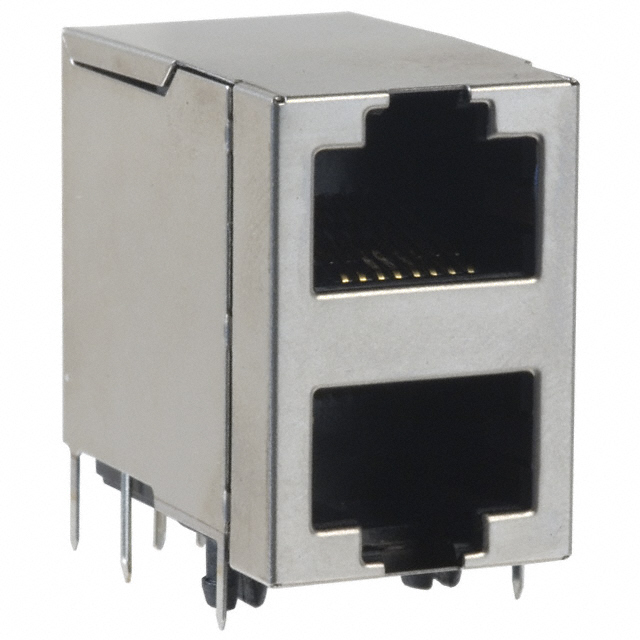

A00-216-272-450

Active

EDAC Inc.

CONN RJ45 MODJACK 2X1 R/A SHIELD

Search across all available documentation for this part.

Active

EDAC Inc.

CONN RJ45 MODJACK 2X1 R/A SHIELD

Technical Specifications

Parameters and characteristics for this part

Specification	A00-216-272-450

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Housing Material	Polyester, Polybutylene Terephthalate (PBT), Glass Filled
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	2
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	2
Orientation	90 °
Ratings	Cat5
Shielding	Shielded
Tab Direction	Up and Down
Termination	Solder

Part	Housing Material	Number of Ports	LED Color	Ratings	Number of Rows	Tab Direction	Mounting Type	Connector Type	Contact Material	Orientation	Contact Finish	Shielding	Number of Positions/Contacts	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. A00-216-660-450	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	Does Not Contain LED	Cat5	1	Down	Through Hole	Jack	Phosphor Bronze	90 °	Gold	Unshielded	8p8c (RJ45 Ethernet)	Solder	0.76 Ám	30 Áin
EDAC Inc. A00-216-272-450	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	Does Not Contain LED	Cat5	2	Up and Down	Through Hole	Jack	Phosphor Bronze	90 °	Gold	Shielded	8p8c (RJ45 Ethernet)	Solder			Flash
EDAC Inc. A00-216-662-450	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2	Does Not Contain LED	Cat5	1	Down	Through Hole	Jack	Phosphor Bronze	90 °	Gold	Shielded	8p8c (RJ45 Ethernet)	Solder	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat5
