2466C SL013
ActiveALPHA WIRE
MULTI-PAIR 4CON 22AWG SLATE FEET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2466C SL013
ActiveALPHA WIRE
MULTI-PAIR 4CON 22AWG SLATE FEET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2466C SL013 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.17 in |
| Jacket (Insulation) Diameter [diameter] | 4.32 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.02 in |
| Jacket (Insulation) Thickness | 0.508 mm |
| Jacket Color | Slate |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 4 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Spool Size | 1524 m |
| Spool Size | 5000 ' |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 1.48 | |
| 3 | $ 1.37 | |||
| 5 | $ 1.32 | |||
| 7 | $ 1.29 | |||
| 10 | $ 1.26 | |||
| 25 | $ 1.18 | |||
| 50 | $ 1.12 | |||
| 100 | $ 1.07 | |||
Description
General part information
2466C Series

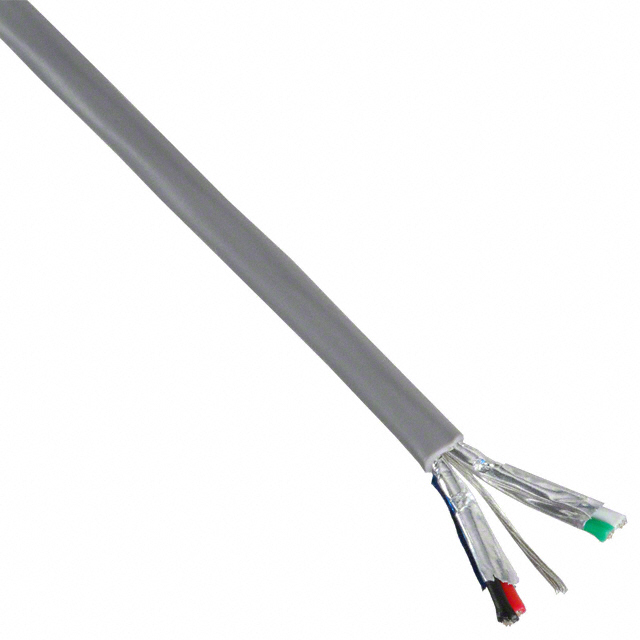

4 (2 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG Foil Enter Number of Feet in Order Quantity
