BIS10PLN0720F

Active

Souriau-Sunbank by Eaton

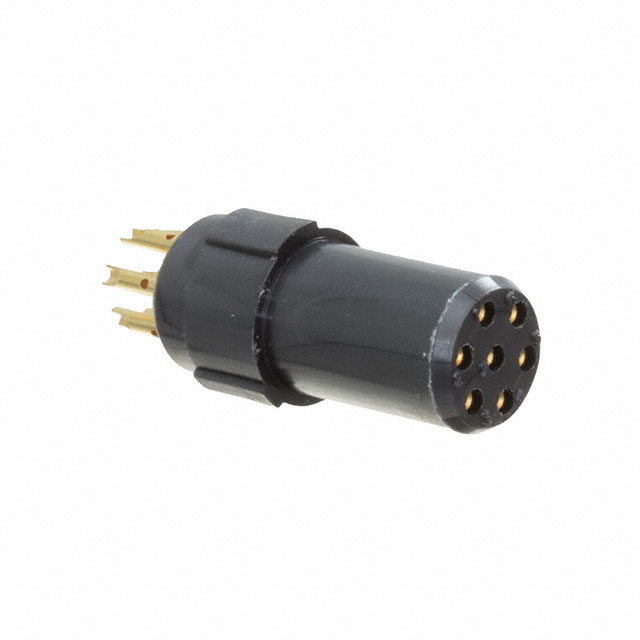

CONN FMALE INSERT 7P SOLDER CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BIS10PLN0720F

Applications	Marine
Connector Type	Female Sockets, Insert
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7 A
Features	Insert Only, Requires Shell
Ingress Protection	Water Resistant
Insert Material	Molybdenum Disulfide (MoS2), Polyamide (PA66), Nylon 6/6
Number of Positions	7
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Size - Insert	10-7
Shielding	Unshielded

BIS10PL Series

Part	Shell Size - Insert	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Features	Shielding	Contact Material	Contact Finish - Mating	Applications	Ingress Protection	Insert Material	Orientation	Number of Positions
Souriau-Sunbank by Eaton BIS10PLN0314M	10-3	Insert Male Pins	-20 C	70 °C	20 A	Insert Only Requires Shell	Unshielded	Copper Alloy	Gold	Marine	Water Resistant	Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66)	Keyed
Souriau-Sunbank by Eaton BIS10PLN0416F	10-4	Female Sockets Insert	-20 C	70 °C	14 A	Insert Only Requires Shell	Unshielded	Copper Alloy	Gold	Marine	Water Resistant	Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66)	Keyed	4
Souriau-Sunbank by Eaton BIS10PLN0920M	10-9	Insert Male Pins	-20 C	70 °C	7 A	Insert Only Requires Shell	Unshielded	Copper Alloy	Gold	Marine	Water Resistant	Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66)	Keyed	9
Souriau-Sunbank by Eaton BIS10PLN0314F	10-3	Female Sockets Insert	-20 C	70 °C	20 A	Insert Only Requires Shell	Unshielded	Copper Alloy	Gold	Marine	Water Resistant	Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66)	Keyed
Souriau-Sunbank by Eaton BIS10PLN0416M	10-4	Insert Male Pins	-20 C	70 °C	14 A	Insert Only Requires Shell	Unshielded	Copper Alloy	Gold	Marine	Water Resistant	Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66)	Keyed	4
Souriau-Sunbank by Eaton BIS10PLN0720F	10-7	Female Sockets Insert	-20 C	70 °C	7 A	Insert Only Requires Shell	Unshielded	Copper Alloy	Gold	Marine	Water Resistant	Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66)	Keyed	7
Souriau-Sunbank by Eaton BIS10PLN0720M	10-7	Insert Male Pins	-20 C	70 °C	7 A	Insert Only Requires Shell	Unshielded	Copper Alloy	Gold	Marine	Water Resistant	Molybdenum Disulfide (MoS2) Nylon 6/6 Polyamide (PA66)	Keyed	7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.74
		10	$ 37.73
		25	$ 34.24
		50	$ 31.88
		100	$ 29.75
		250	$ 27.24

Description

General part information

BIS10PL Series

7 Position Circular Connector Insert, Female Sockets Solder Cup
