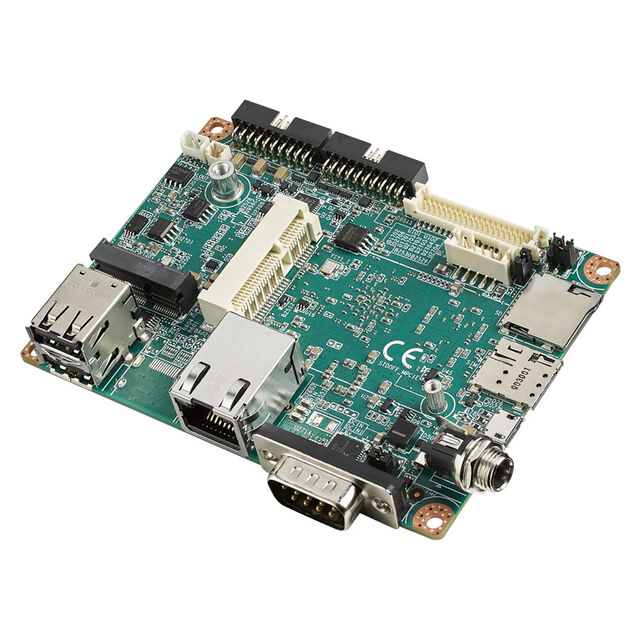

RSB-3730CQ-XNA1E
ActiveAdvantech Corp
SBC 1.8GHZ 4 CORE 64GB/2GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
RSB-3730CQ-XNA1E
ActiveAdvantech Corp
SBC 1.8GHZ 4 CORE 64GB/2GB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RSB-3730CQ-XNA1E |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | ARM Cortex-A53 |
| Ethernet | 1000 Mbps, 10 Mbps, 100 Mbps |
| Expansion Site/Bus | I2C, MIPI, Audio, GPIO, mPCIe, CAN |
| Form Factor | 2.5" SBC |
| Number of Cores | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Capacity/Installed | 64 GB, 2 GB |
| RS-232 (422, 485) | 2 |
| Size / Dimension [x] | 99.99 mm |
| Size / Dimension [x] | 3.937 in |
| Size / Dimension [y] | 2.835 in |
| Size / Dimension [y] | 72 mm |
| Speed | 1.8 GHz |
| Storage Interface | SD, eMMC |
| USB | USB 2.0 Type-A (5), USB OTG (1) |
| Video Outputs | LVDS, DSI, HDMI, MIPI-DSI |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 204.75 | |
| 1 | $ 240.45 | |||
| 1 | $ 204.75 | |||
| 1 | $ 240.45 | |||
Description
General part information
RSB-3730 Series
Single Board Computer 1.8GHz 4 Core 64GB/2GB RAM ARM Cortex-A53
Documents
Technical documentation and resources
No documents available
