G17S1510110EU

Active

Amphenol ICC (Commercial Products)

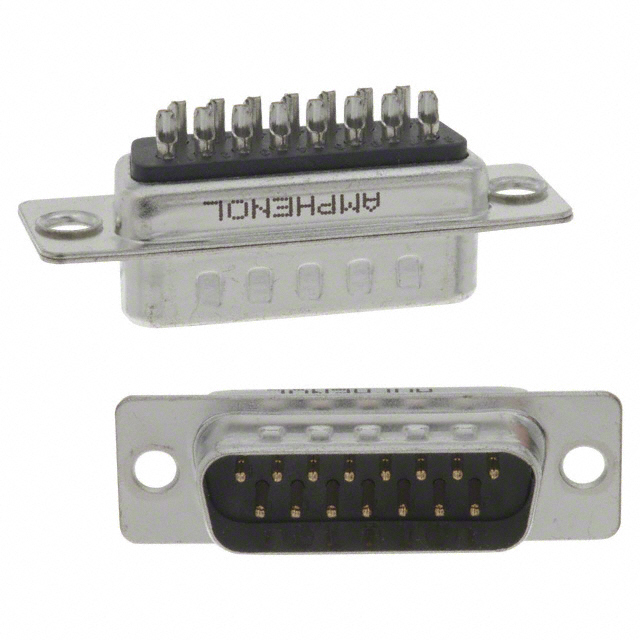

CONN D-SUB PLUG 15POS SLDR CUP

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 15POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	G17S1510110EU

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layout	2
Voltage Rating	250 VDC

Part	Dielectric Material	Number of Positions	Mounting Type	Contact Finish Thickness	Connector Style	Number of Rows	Voltage Rating	Connector Type	Material Flammability Rating	Contact Type	Shell Size, Connector Layout	Contact Material	Current Rating (Amps)	Color	Flange Feature	Features
Amphenol ICC (Commercial Products) G17S1510110EU	Polybutylene Terephthalate (PBT) Glass Filled	15	Free Hanging (In-Line)	Flash	D-Sub	2	250 VDC	Male Pins Plug	UL94 V-0	Signal	2	Copper Alloy	5 A	Black	Housing/Shell (Unthreaded)	Grounding Indents
Amphenol ICC (Commercial Products) G17S1500110EU	Polybutylene Terephthalate (PBT) Glass Filled	15	Free Hanging (In-Line)	Flash	D-Sub	2	250 VDC	Receptacle Female Sockets	UL94 V-0	Signal	2		5 A	Black	Housing/Shell (Unthreaded)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Plug, Male Pins Connector
