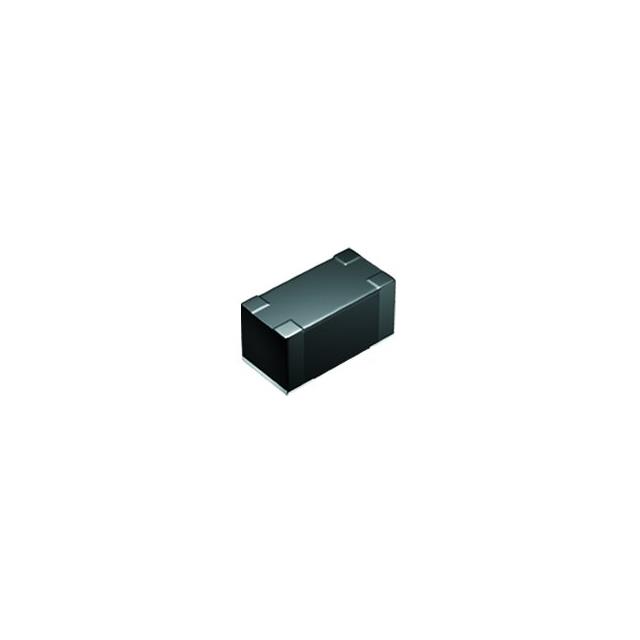

LSQBB160808T100K

Active

TAIYO YUDEN

FIXED IND 10UH 80MA 0.36 OHM SMD

Search across all available documentation for this part.

Active

TAIYO YUDEN

FIXED IND 10UH 80MA 0.36 OHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Shielding	Type	Material - Core	Frequency - Self Resonant	DC Resistance (DCR)	Tolerance	Inductance Frequency - Test
TAIYO YUDEN LSQBB160808T1R0M	1 µH	-40 °C	105 ░C	0.8 mm	0.063 in	1.6 mm	0.031 in	0.23 A	Surface Mount	0.039 "	1 mm	0603 (1608 Metric)	Unshielded	Wirewound	Ferrite	100 MHz	90 mOhm	20 %	7.96 MHz
TAIYO YUDEN LSQBB160808T100K	10 µH	-40 °C	105 ░C	0.8 mm	0.063 in	1.6 mm	0.031 in	80 mA	Surface Mount	0.039 "	1 mm	0603 (1608 Metric)	Unshielded	Wirewound	Ferrite	32 MHz	360 mOhm	10 %	2.52 MHz
TAIYO YUDEN LSQBB160808T2R2M	2.2 µH	-40 °C	105 ░C	0.8 mm	0.063 in	1.6 mm	0.031 in	160 mA	Surface Mount	0.039 "	1 mm	0603 (1608 Metric)	Unshielded	Wirewound	Ferrite	80 MHz	170 mOhm	20 %	7.96 MHz
TAIYO YUDEN LSQBB160808T3R3M	3.3 µH	-40 °C	105 ░C	0.8 mm	0.063 in	1.6 mm	0.031 in	130 mA	Surface Mount	0.039 "	1 mm	0603 (1608 Metric)	Unshielded	Wirewound	Ferrite	60 MHz	220 mOhm	20 %	7.96 MHz
TAIYO YUDEN LSQBB160808T4R7M	4.7 ÁH	-40 °C	105 ░C	0.8 mm	0.063 in	1.6 mm	0.031 in	110 mA	Surface Mount	0.039 "	1 mm	0603 (1608 Metric)	Unshielded	Wirewound	Ferrite	45 MHz	240 mOhm	20 %	7.96 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 µH Unshielded Wirewound Inductor 80 mA 360mOhm 0603 (1608 Metric)
