BJ74-29

Active

Cinch Connectivity Solutions Trompeter

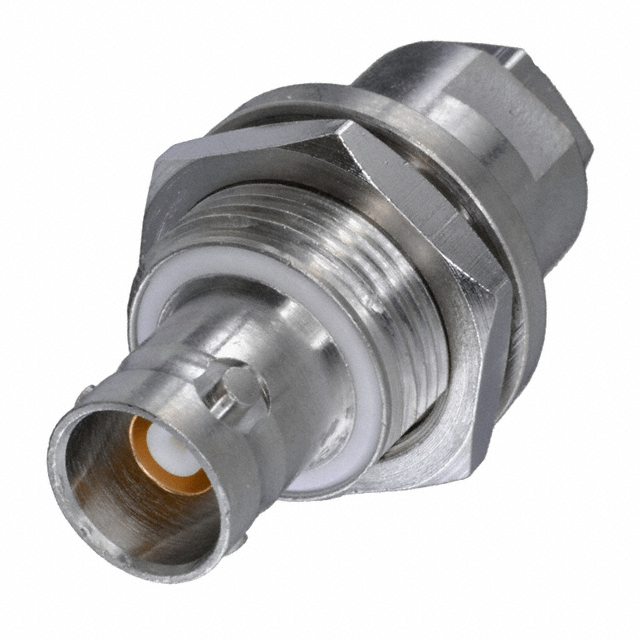

CONN TRB JACK STR SOLDER

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TRB JACK STR SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	BJ74-29

Body Finish	Nickel
Body Material	Brass
Cable Group	TWC-124-1A, TWC-78-1
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Twinaxial/Triaxial, TRB
Connector Type	Female Socket (Concentric), Jack
Contact Termination	Solder
Fastening Type	Bayonet Lock
Features	Three Lug
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Includes	Connector, Washer, Nut
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Wrench Clamp
Voltage Rating	400 V

Part	Fastening Type	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Center Contact Plating	Number of Ports	Shield Termination	Body Finish	Impedance	Connector Style	Cable Group	Connector Type	Contact Termination	Body Material	Housing Color	Mounting Feature	Frequency - Max [Max]	Mating Cycles	Includes	Voltage Rating
Cinch Connectivity Solutions Trompeter BJ74-29	Bayonet Lock	Beryllium Copper	-65 ░C	165 °C	Three Lug	Gold	1	Wrench Clamp	Nickel	Non-Constant	TRB Twinaxial/Triaxial	TWC-124-1A TWC-78-1	Female Socket (Concentric) Jack	Solder	Brass	Silver	Bulkhead - Front Side Nut	500 MHz	500	Connector Nut Washer	400 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Panel Mount Solder
