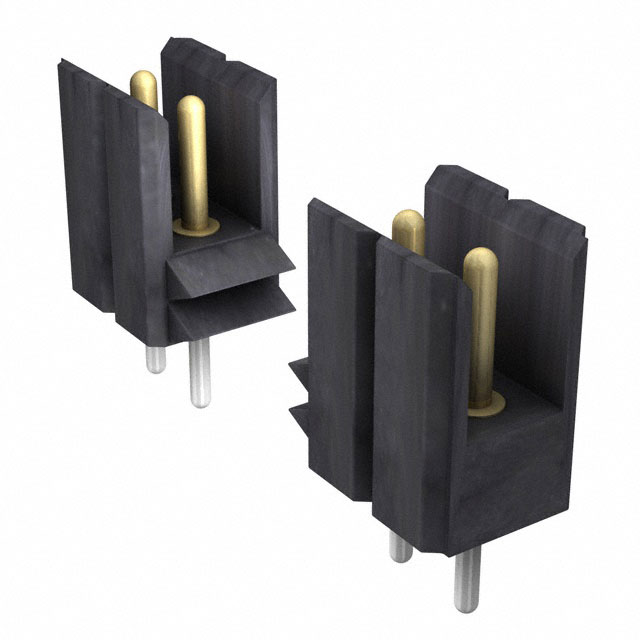

800-V3-030-12-002101

Active

PRECI-DIP SA

CONN HEADER VERT 30POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

800-V3-030-12-002101

Active

PRECI-DIP SA

CONN HEADER VERT 30POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	800-V3-030-12-002101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Length - Mating	0.141 in
Contact Length - Mating	3.6 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.91 mm
Insulation Height [z]	0.272 "
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	9.8 mm
Overall Contact Length	0.386 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

800-V3 Series

...

Part	Insulation Color	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Material	Current Rating (Amps)	Insulation Height	Insulation Height	Fastening Type	Contact Finish - Mating	Contact Length - Post	Contact Length - Post [x]	Connector Type	Contact Type	Number of Rows	Contact Finish - Post	Mounting Type	Number of Positions	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Voltage Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Shrouding	Termination	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Post	Insulation Height [z]	Features
PRECI-DIP SA 800-V3-021-20-001101	Black	Circular	29.5 Áin	0.75 Ám	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	3 A	0.1 in	2.54 mm	Push-Pull	Gold	3.2 mm	0.126 in	Header	Male Pin	1	Tin	Through Hole Right Angle	21	UL94 V-0	0.1 in	2.54 mm	150 VDC	All	-55 °C	125 °C	0.195 "	4.95 mm	Unshrouded	Solder
PRECI-DIP SA 800-V3-005-40-001101	Black	Circular	29.5 Áin	0.75 Ám	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	3 A	0.1 in	2.54 mm	Push-Pull	Gold			Header	Male Pin	1	Tin	Surface Mount Right Angle		UL94 V-0	0.1 in	2.54 mm	150 VDC	All	-55 °C	125 °C		0.191 in	Unshrouded	Solder	4.85 mm
PRECI-DIP SA 800-V3-030-12-002101	Black	Circular	29.5 Áin	0.75 Ám	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	3 A		6.91 mm	Push-Pull	Gold	3 mm		Header	Male Pin	1	Tin	Through Hole	30	UL94 V-0	0.1 in	2.54 mm	150 VDC	All	-55 °C	125 °C	0.141 in	3.6 mm	Unshrouded	Solder		9.8 mm	0.386 in	0.118 in	0.272 "
PRECI-DIP SA 800-V3-004-32-002191	Black	Circular	29.5 Áin	0.75 Ám	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	3 A		6.91 mm	Push-Pull	Gold			Header	Male Pin	1	Tin	Surface Mount	4	UL94 V-0	0.1 in	2.54 mm	150 VDC	All	-55 °C	125 °C	0.141 in	3.6 mm	Unshrouded	Solder					0.272 "	Pick and Place
PRECI-DIP SA 800-V3-028-32-002101	Black	Circular	29.5 Áin	0.75 Ám	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	3 A		6.91 mm	Push-Pull	Gold			Header	Male Pin	1	Tin	Surface Mount	28	UL94 V-0	0.1 in	2.54 mm	150 VDC	All	-55 °C	125 °C	0.141 in	3.6 mm	Unshrouded	Solder					0.272 "
PRECI-DIP SA 800-V3-005-30-001101	Black	Circular	29.5 Áin	0.75 Ám	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	3 A	0.116 in	2.95 mm	Push-Pull	Gold			Header	Male Pin	1	Tin	Surface Mount		UL94 V-0	0.1 in	2.54 mm	150 VDC	All	-55 °C	125 °C		0.191 in	Unshrouded	Solder	4.85 mm
PRECI-DIP SA 800-V3-026-40-001101	Black	Circular	29.5 Áin	0.75 Ám	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	3 A	0.1 in	2.54 mm	Push-Pull	Gold			Header	Male Pin	1	Tin	Surface Mount Right Angle	26	UL94 V-0	0.1 in	2.54 mm	150 VDC	All	-55 °C	125 °C		0.191 in	Unshrouded	Solder	4.85 mm
PRECI-DIP SA 800-V3-011-32-002101	Black	Circular	29.5 Áin	0.75 Ám	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	3 A		6.91 mm	Push-Pull	Gold			Header	Male Pin	1	Tin	Surface Mount	11	UL94 V-0	0.1 in	2.54 mm	150 VDC	All	-55 °C	125 °C	0.141 in	3.6 mm	Unshrouded	Solder					0.272 "
PRECI-DIP SA 800-V3-009-30-001101	Black	Circular	29.5 Áin	0.75 Ám	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	3 A	0.116 in	2.95 mm	Push-Pull	Gold			Header	Male Pin	1	Tin	Surface Mount	9	UL94 V-0	0.1 in	2.54 mm	150 VDC	All	-55 °C	125 °C		0.191 in	Unshrouded	Solder	4.85 mm
PRECI-DIP SA 800-V3-012-40-001101	Black	Circular	29.5 Áin	0.75 Ám	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass	3 A	0.1 in	2.54 mm	Push-Pull	Gold			Header	Male Pin	1	Tin	Surface Mount Right Angle	12	UL94 V-0	0.1 in	2.54 mm	150 VDC	All	-55 °C	125 °C		0.191 in	Unshrouded	Solder	4.85 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	120	$ 6.59

Description

General part information

800-V3 Series

Connector Header Through Hole 30 position 0.100" (2.54mm)
