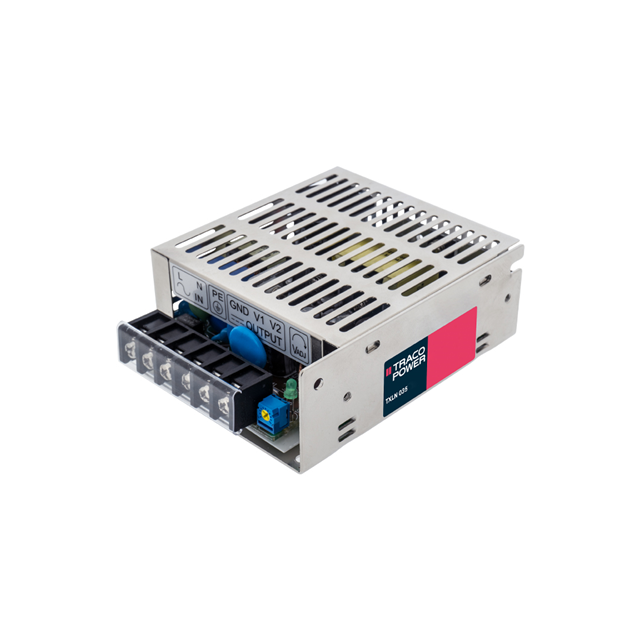

TXLN 035-112

Active

Traco Power

AC/DC CONVERTER 12V 36W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 12V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	TXLN 035-112

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	3 A
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	36 W
Size / Dimension [x]	3.9 "
Size / Dimension [x]	99 mm
Size / Dimension [y]	82 mm
Size / Dimension [y]	3.23 "
Size / Dimension [z]	1.38 in
Size / Dimension [z]	35 mm
Standard Number	62368-1
Type	Enclosed
Voltage - Input [Max]	264 VAC, 375 VDC
Voltage - Input [Min]	88 VAC, 125 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Approval Agency	Current - Output 1	Current - Output 2	Voltage - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Isolation	Power (Watts)	Standard Number	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Features	Applications	Voltage - Output 1
Traco Power TXLN 035-23M3	CB CE cURus	2.4 A	1.5 A	-15 V	-20 °C	70 °C	Enclosed	Chassis Mount	84 %	264 VAC 375 VDC	88 VAC 125 VDC	3000 V	59 W	62368-1	1.38 in	35 mm	3.9 "	82 mm	3.23 "	99 mm	2	Adjustable Output Universal Input	ITE (Commercial)	15 V
Traco Power TXLN 035-148	CB CE cURus				-20 °C	70 °C	Enclosed	Chassis Mount	86 %	264 VAC 375 VDC	88 VAC 125 VDC	3000 V	38 W	62368-1	1.38 in	35 mm	3.9 "	82 mm	3.23 "	99 mm	1	Adjustable Output Universal Input	ITE (Commercial)	48 V
Traco Power TXLN 035-112	CB CE cURus	3 A			-20 °C	70 °C	Enclosed	Chassis Mount		264 VAC 375 VDC	88 VAC 125 VDC	3000 V	36 W	62368-1	1.38 in	35 mm	3.9 "	82 mm	3.23 "	99 mm	1	Adjustable Output Universal Input	ITE (Commercial)	12 V
Traco Power TXLN 035-215	CB CE cURus	4 A	1.3 A	24 V	-20 °C	70 °C	Enclosed	Chassis Mount	79 %	264 VAC 375 VDC	88 VAC 125 VDC	3000 V	51 W	62368-1	1.38 in	35 mm	3.9 "	82 mm	3.23 "	99 mm	2	Adjustable Output Universal Input	ITE (Commercial)	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 88 ~ 264 VAC, 125 ~ 375 VDC Input
