8856V
Obsoleteebm-papst Inc.
AC AXIAL FAN
Deep-Dive with AI
Search across all available documentation for this part.
8856V
Obsoleteebm-papst Inc.
AC AXIAL FAN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8856V |
|---|---|
| Air Flow | 1.01 m³/min |
| Air Flow | 36 CFM |
| Approval Agency | UL, VDE, CSA |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Material - Blade | Metal |
| Material - Frame | Metal |
| Noise | 35 dB |
| Operating Temperature | 194 °F |
| Operating Temperature | 90 °C |
| Power (Watts) | 11 W |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Termination | 2 Terminals |
| Voltage - Rated | 230 VAC |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
8856 Series

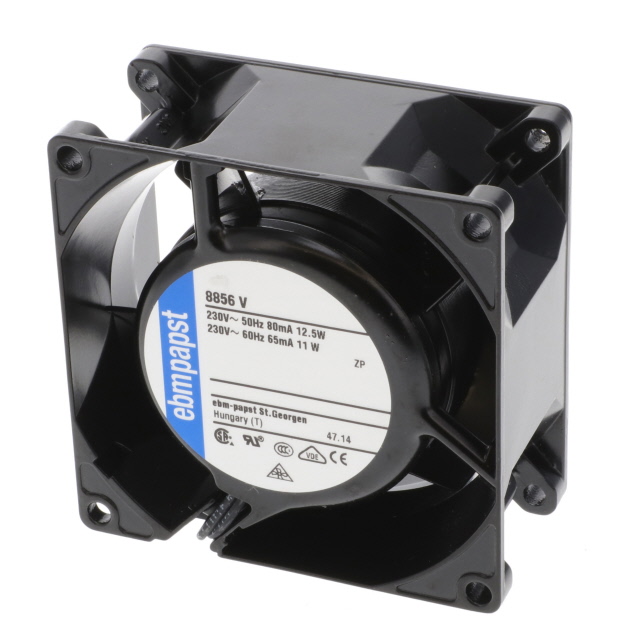

Fan Tubeaxial 230VAC Square - 80mm L x 80mm H Ball 36.0 CFM (1.01m³/min) 2 Terminals
Documents
Technical documentation and resources
No documents available
