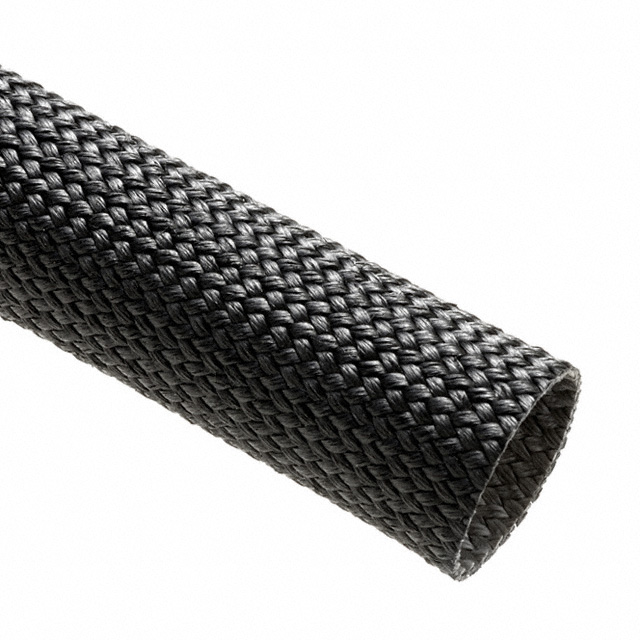

FGN0.75BK50
ActiveTechflex
EXPAND SLEEVE 3/4" X 50' BLACK
Deep-Dive with AI
Search across all available documentation for this part.
FGN0.75BK50
ActiveTechflex
EXPAND SLEEVE 3/4" X 50' BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FGN0.75BK50 |
|---|---|
| Abrasion Protection | Abrasion and Cut Resistant |
| Color | Black |
| Diameter - Inside, Expanded [diameter] | 28.58 mm |
| Diameter - Inside, Expanded [diameter] | 1.125 in |
| Diameter - Inside, Non-Expanded [diameter] | 19.05 mm |
| Diameter - Inside, Non-Expanded [diameter] | 0.75 in |
| Features | Vibration Resistant, Clean Cut, Chemical Resistant |
| Heat Protection | Heat Resistant |
| Length | 15.24 m |
| Length [x] | 50 ft |
| Liquid Protection | Gasoline Resistant |
| Material | Fiberglass, Resin Coated, Halogen Free |
| Material Flammability Rating | UL VW-1 |
| Type | Sleeve |
| Type Attributes | Expandable |
| Wall Thickness | 1.17 mm |
| Wall Thickness | 0.046 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 129.46 | |
| 2 | $ 119.06 | |||
| 3 | $ 113.38 | |||
| 5 | $ 106.60 | |||
| 7 | $ 102.35 | |||
| 10 | $ 98.04 | |||
| 25 | $ 87.78 | |||
| 50 | $ 80.74 | |||
| 100 | $ 75.00 | |||
Description
General part information
FGN0 Series
Sleeve X 50.00' (15.24m) Black
