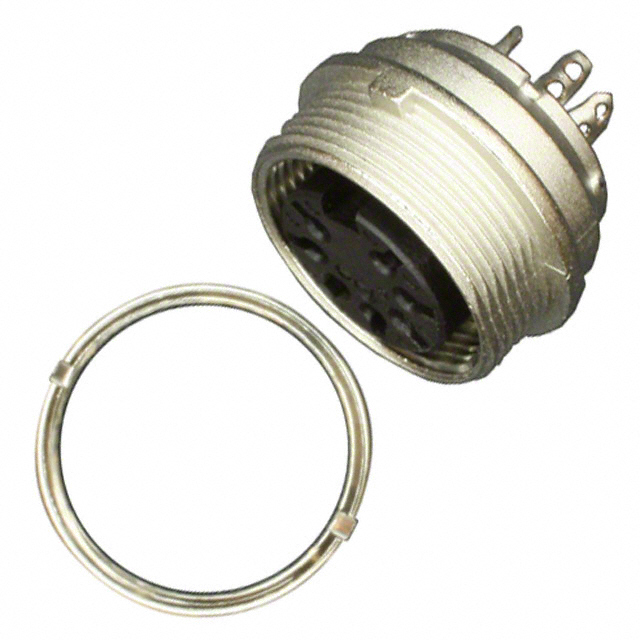

T 3487 100

Active

Amphenol Tuchel Industrial

CONN RCPT FMALE 7P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T 3487 100

Active

Amphenol Tuchel Industrial

CONN RCPT FMALE 7P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T 3487 100

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Current Rating (Amps)	7 A
Ingress Protection	IP40
Number of Positions	7
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-7B
Shielding	Shielded
Voltage Rating	250 VDC

T 3487 Series

Part	Shell Size - Insert	Contact Finish - Mating	Number of Positions	Shell Material	Termination	Orientation	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Primary Material	Ingress Protection	Voltage Rating	Shell Finish	Mounting Type	Color	Connector Type	Insert Material	Mounting Feature	Housing Color	Note	Contact Type	Material Flammability Rating	Type	Contact Shape	Contact Size
Amphenol Tuchel Industrial T 3487 330	M16-7B	Silver	7	Die Cast	Solder	Keyed	7 A	100 °C	-40 °C	Shielded	Metal	IP40	250 VDC	Nickel	Panel Mount Through Hole	Silver	Receptacle Female Sockets
Amphenol Tuchel Industrial T 3487 420	M16-7B	Silver	7	Die Cast	Solder	Keyed	7 A	100 °C	-40 °C	Shielded	Metal	IP40	250 VDC	Nickel	Panel Mount Through Hole	Silver	Receptacle Female Sockets
Amphenol Tuchel Industrial T 3487 320	M16-7B	Silver	7	Die Cast	Solder	Keyed	7 A	100 °C	-40 °C	Shielded	Metal	IP40	250 VDC	Nickel	Panel Mount Through Hole	Silver	Receptacle Female Sockets
Amphenol Tuchel Industrial T 3487 550	M16-7B		7	Die Cast		Keyed		100 °C	-40 °C	Shielded		IP40		Nickel			Receptacle Housing	Thermoplastic	Bulkhead - Rear Side Nut	Silver	Contacts Not Included	Crimp	UL94 V-0	For Female Sockets	Circular	1.5 mm
Amphenol Tuchel Industrial T 3487 900	M16-7B	Silver	7	Die Cast	Solder	Keyed	7 A	100 °C	-40 °C	Shielded	Metal	IP40	250 VDC	Nickel	Panel Mount Right Angle Through Hole	Silver	Receptacle Female Sockets
Amphenol Tuchel Industrial T 3487 100	M16-7B	Silver	7	Die Cast		Keyed	7 A	100 °C	-40 °C	Shielded	Metal	IP40	250 VDC	Nickel		Silver	Receptacle Female Sockets
Amphenol Tuchel Industrial T 3487 430	M16-7B	Silver	7	Die Cast	Solder	Keyed	7 A	100 °C	-40 °C	Shielded	Metal	IP40	250 VDC	Nickel	Panel Mount Through Hole	Silver	Receptacle Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.79
		10	$ 12.92
		25	$ 11.68
		50	$ 10.85
		100	$ 10.09
		250	$ 9.20
		500	$ 8.60
		1000	$ 8.05

Description

General part information

T 3487 Series

7 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources
