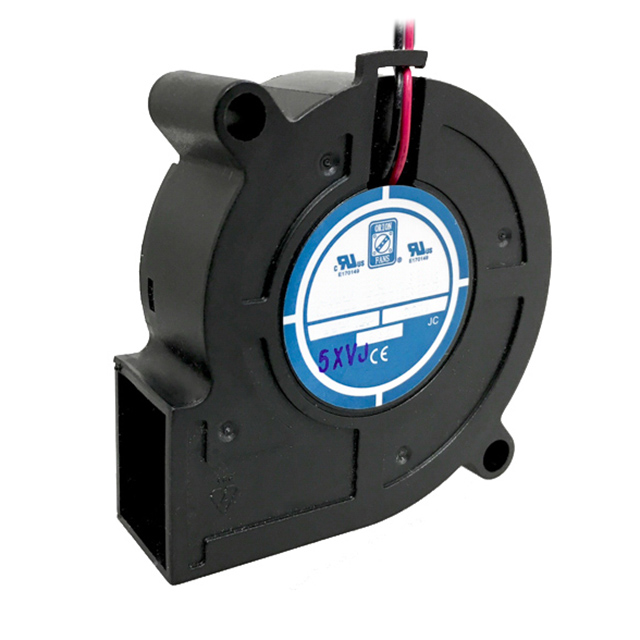

ODB5115-12HB

Active

Orion Fans

FAN BLOWER, 51MM, 1.1W, 12VDC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Orion Fans

FAN BLOWER, 51MM, 1.1W, 12VDC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	ODB5115-12HB

Air Flow	0.118 m³/min
Air Flow	4.2 CFM
Approval Agency	CE, cURus
Bearing Type	Ball
Current Rating (Amps)	120 mA
Fan Type	Blower
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	38 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.92 W
RPM	5500 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	51.11 mm
Size / Dimension [z]	47.76 mm
Static Pressure	124.5 Pa
Static Pressure	0.5 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	26.76 g
Weight	0.059 lb
Width [x]	15 mm

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension	Current Rating (Amps)	Air Flow	Air Flow	Lifetime @ Temp.	Weight	Weight	Power (Watts)	RPM	Bearing Type	Approval Agency	Termination	Voltage Range [Max]	Voltage Range [Min]	Width [x]	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	Material - Blade	Fan Type	Noise
Orion Fans ODB5115-12HB	51.11 mm	47.76 mm	Rectangular/Rounded	120 mA	0.118 m³/min	4.2 CFM	70000 Hrs	26.76 g	0.059 lb	1.92 W	5500 RPM	Ball	CE cURus	2 Wire Leads	13.2 VDC	7 V	15 mm	12 VDC	70 °C	70 °C	-10 °C	-10 °C	124.5 Pa	0.5 in H2O	Polybutylene Terephthalate (PBT)	Blower	38 dB(A)
Orion Fans ODB5115-12MB	51.11 mm	47.76 mm	Rectangular/Rounded		0.092 m³/min	3.3 CFM	70000 Hrs	26.76 g	0.059 lb	1.44 W	4500 RPM	Ball	CE cURus	2 Wire Leads	13.2 VDC	7 V	15 mm	12 VDC	70 °C	70 °C	-10 °C	-10 °C	87.2 Pa	0.35 in H2O	Polybutylene Terephthalate (PBT)	Blower	37 dB
Orion Fans ODB5115-12LB	51.11 mm	47.76 mm	Rectangular/Rounded	45 mA	0.067 m³/min	2.4 CFM	70000 Hrs	26.76 g	0.059 lb	840 mW	3500 RPM	Ball	CE cURus	2 Wire Leads	13.2 VDC	7 V	15 mm	12 VDC	70 °C	70 °C	-10 °C	-10 °C	49.8 Pa	0.2 in H2O	Polybutylene Terephthalate (PBT)	Blower	32 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 12VDC Rectangular/Rounded - 51.11mm L x 47.76mm H Ball 4.2 CFM (0.118m³/min) 2 Wire Leads
