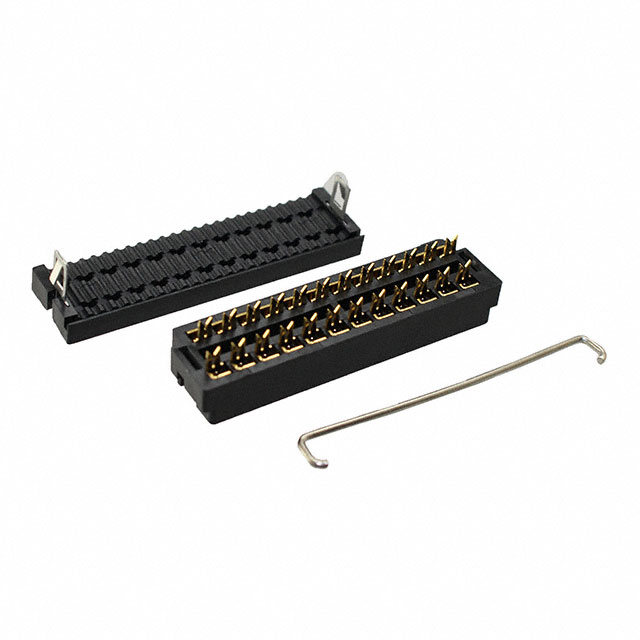

HIF4A-24D-3.18R

LTB

Hirose Electric USA, Inc.

CONN RCPT 24POS IDC 24AWG GOLD

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

CONN RCPT 24POS IDC 24AWG GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Style	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Fastening Type	Contact Finish - Mating	Voltage Rating	Contact Length - Mating	Contact Length - Mating	Termination	Current Rating (Amps)	Contact Type	Contact Material	Insulation Color	Number of Positions Loaded	Shrouding	Contact Shape	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Row Spacing	Row Spacing	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Color	Pitch [x]	Pitch [x]	Cable Termination	Wire Type
Hirose Electric USA, Inc. HIF4A-24P-3.18DS	Header	85 °C	-55 °C	Through Hole Right Angle	Board to Cable/Wire	24	0.25 in	6.35 mm	Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks	Gold	300 VDC	0.22 in	5.59 mm	Solder	3 A	Male Pin	Phosphor Bronze	Black	All	Shrouded - 4 Wall	Square	UL94 V-0	30 Áin	0.76 Ám	2
Hirose Electric USA, Inc. HIF4A-24D-3.18R	Receptacle			Free Hanging (In-Line)		24											Female Socket									2	6.35 mm	0.25 in	Gold	0.76 Ám	30 Áin	24 AWG	Black	0.125 in	3.18 mm	IDC	Discrete or Ribbon Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 15.73

General part information

24 Position Rectangular Receptacle Connector IDC Gold 24 AWG

Technical documentation and resources
