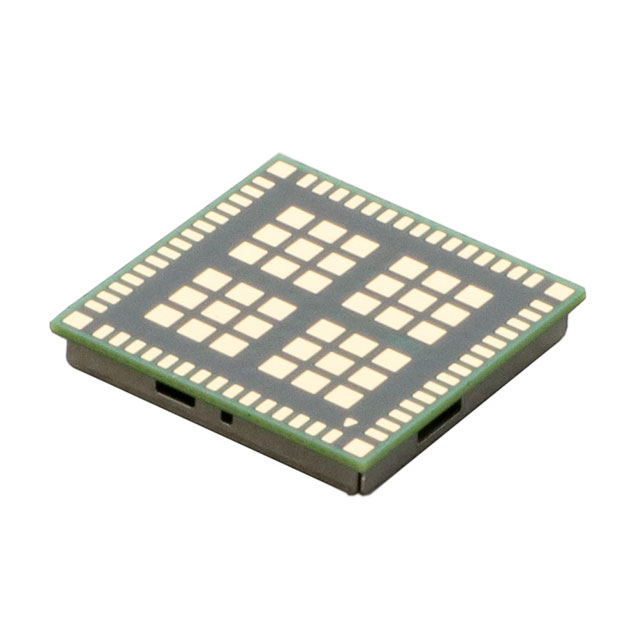

WL1807MODGIMOCR

Active

Texas Instruments

WILINK™ 8 INDUSTRIAL DUAL BAND COMBO, 2X2 MIMO WI-FI MODULE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAdvantages and Challenges of Multi-Role Multi-Channel versus Single-Channel Sitara™ processors + WiLink™ 8 Wi-Fi® + Bluetooth® combo connectivity (Rev. A)+11

WL1807MODGIMOCR

Active

Texas Instruments

WILINK™ 8 INDUSTRIAL DUAL BAND COMBO, 2X2 MIMO WI-FI MODULE

Deep-Dive with AI

DocumentsAdvantages and Challenges of Multi-Role Multi-Channel versus Single-Channel Sitara™ processors + WiLink™ 8 Wi-Fi® + Bluetooth® combo connectivity (Rev. A)+11

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WL1807MODGIMOCR

Current - Receiving	85 mA
Current - Transmitting	510 mA
Data Rate (Max) [Max]	54 Mbps
Frequency	5 GHz, 2.4 GHz
GPIO	7
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	100-SMD Module
Power - Output	18.5 dBm
Protocol	802.11a/b/g/n, Bluetooth v4.1
RF Family/Standard	WiFi, Bluetooth
Sensitivity	-95 dBm
Serial Interfaces	UART
Supplier Device Package	100-QFM
Type	TxRx + MCU
Voltage - Supply [Max]	4.8 V
Voltage - Supply [Min]	2.9 V

WL1807MOD Series

WiLink™ 8 industrial dual band combo, 2x2 MIMO Wi-Fi module

Part	Current - Transmitting	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Type	Package / Case	GPIO	Protocol	Power - Output	Sensitivity	Data Rate (Max) [Max]	Frequency	Serial Interfaces	Current - Receiving	RF Family/Standard	Supplier Device Package
Texas Instruments WL1807MODGIMOCR	510 mA	85 °C	-40 °C	2.9 V	4.8 V	Surface Mount	TxRx + MCU	100-SMD Module	7	802.11a/b/g/n Bluetooth v4.1	18.5 dBm	-95 dBm	54 Mbps	2.4 GHz 5 GHz	UART	85 mA	Bluetooth WiFi	100-QFM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 22.63
		10	$ 20.89
		25	$ 19.15
		100	$ 17.70
		250	$ 16.83
		500	$ 15.67
	Digi-Reel®	1	$ 22.63
		10	$ 20.89
		25	$ 19.15
		100	$ 17.70
		250	$ 16.83
		500	$ 15.67
	Tape & Reel (TR)	1200	$ 15.09
Texas Instruments	LARGE T&R	1	$ 19.07
		100	$ 16.66
		250	$ 12.85
		1000	$ 11.49

Description

General part information

WL1807MOD Series

The certified WiLink™ 8 module from TI offers high throughput and extended range along with Wi-Fi ® and Bluetooth ® coexistence (WL1837MOD only) in a power-optimized design. The WL18x7MOD is a Wi-Fi, dual-band, 2.4- and 5-GHz module solution with two antennas supporting industrial temperature grade. The device is FCC, IC, ETSI/CE, and TELEC certified for AP (with DFS support) and client. TI offers drivers for high-level operating systems, such as Linux and Android™. Additional drivers, such as WinCE and RTOS, which includes QNX, Nucleus, ThreadX, and FreeRTOS, are supported through third parties.
