6030582

Active

SICK, Inc.

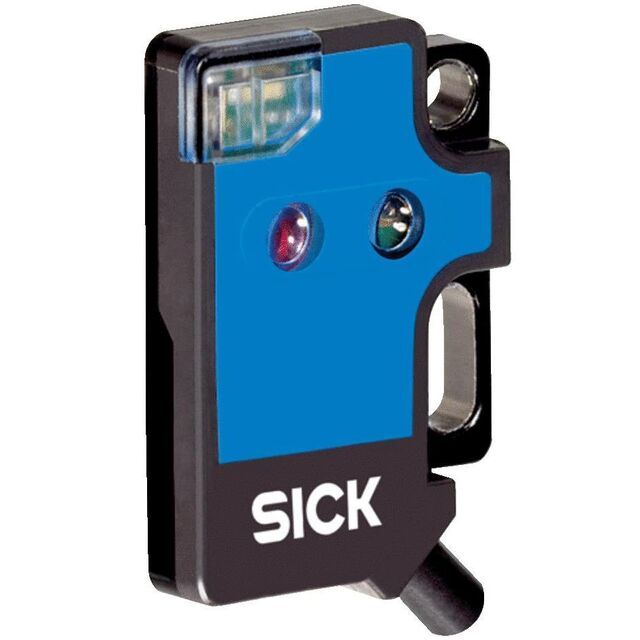

SENSOR PROXIMITY 34MM NPN

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR PROXIMITY 34MM NPN

Technical Specifications

Parameters and characteristics for this part

Part	Light Source	Output Configuration	Voltage - Supply [Min]	Voltage - Supply [Max]	Cable Length	Cable Length	Operating Temperature [Min]	Operating Temperature [Max]	Response Time	Sensing Method	Connection Method	Ingress Protection	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]
SICK, Inc. 6030585	Red (660nm)	NPN	12 V	24 V	0.2 m	7.87 in	-20 °C	55 °C	500 µs	Proximity	Cable with Connector	IP67	0.709 "	2 mm	0.079 "	18 mm
SICK, Inc. 6030590	Red (660nm)	NPN	12 V	24 V	0.2 m	7.87 in	-20 °C	55 °C	500 µs	Proximity	Cable with Connector	IP67	0.354 "	1 mm	0.039 in	9 mm
SICK, Inc. WT2F-P150	Red (660nm)	PNP	12 V	24 V	2 m	78.74 in	-20 °C	55 °C	500 µs	Proximity	Cable	IP67	1.339 in	2 mm	0.079 "	34 mm
SICK, Inc. 6030586	Red (660nm)	PNP	12 V	24 V	0.2 m	7.87 in	-20 °C	55 °C	500 µs	Proximity	Cable with Connector	IP67	0.709 "	2 mm	0.079 "	18 mm
SICK, Inc. 6030575	Red (660nm)	PNP	12 V	24 V	0.2 m	7.87 in	-20 °C	55 °C	500 µs	Proximity	Cable with Connector	IP67	4.528 "	4 mm	0.157 "	115 mm
SICK, Inc. 6030582	Red (660nm)	NPN	12 V	24 V	0.2 m	7.87 in	-20 °C	55 °C	500 µs	Proximity	Cable with Connector	IP67	1.339 in	2 mm	0.079 "	34 mm
SICK, Inc. 6030573	Red (660nm)	PNP	12 V	24 V	2 m	78.74 in	-20 °C	55 °C	500 µs	Proximity	Cable	IP67	4.528 "	4 mm	0.157 "	115 mm
SICK, Inc. 6030574	Red (660nm)	NPN	12 V	24 V	0.2 m	7.87 in	-20 °C	55 °C	500 µs	Proximity	Cable with Connector	IP67	4.528 "	4 mm	0.157 "	115 mm
SICK, Inc. 6030583	Red (660nm)	NPN	12 V	24 V	2 m	78.74 in	-20 °C	55 °C	500 µs	Proximity	Cable	IP67	0.709 "	2 mm	0.079 "	18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 234.07

General part information

Proximity Optical Sensor 0.079" ~ 1.339" (2mm ~ 34mm) NPN
