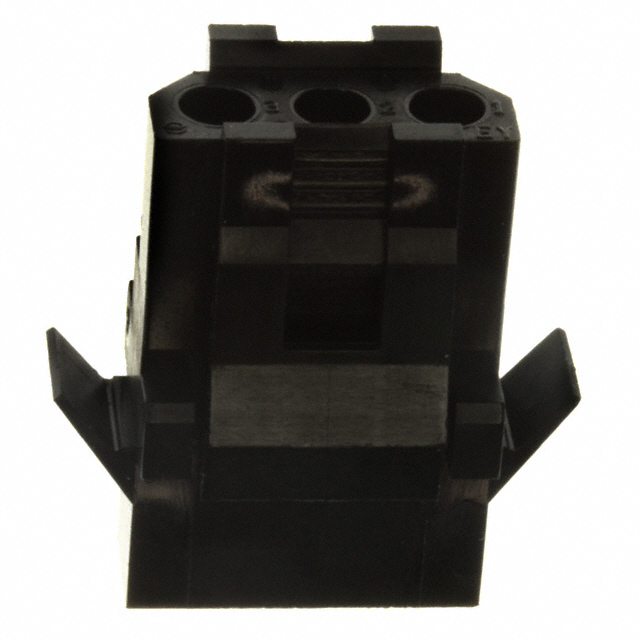

SMS3R1
UnknownSouriau-Sunbank by Eaton
CONN RCPT HSG 3POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
SMS3R1
UnknownSouriau-Sunbank by Eaton
CONN RCPT HSG 3POS 5.08MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMS3R1 |
|---|---|
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male or Female |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Panel Mount, Snap-In |
| Note | Contacts Not Included |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 1.85 | |
| 10 | $ 1.41 | |||
| 25 | $ 1.27 | |||
| 50 | $ 1.17 | |||
| 100 | $ 1.08 | |||
Description
General part information
SMS3R Series
3 Rectangular Connectors - Housings Receptacle 0.200" (5.08mm)
Documents
Technical documentation and resources
No documents available
