1891069

Active

Phoenix Contact

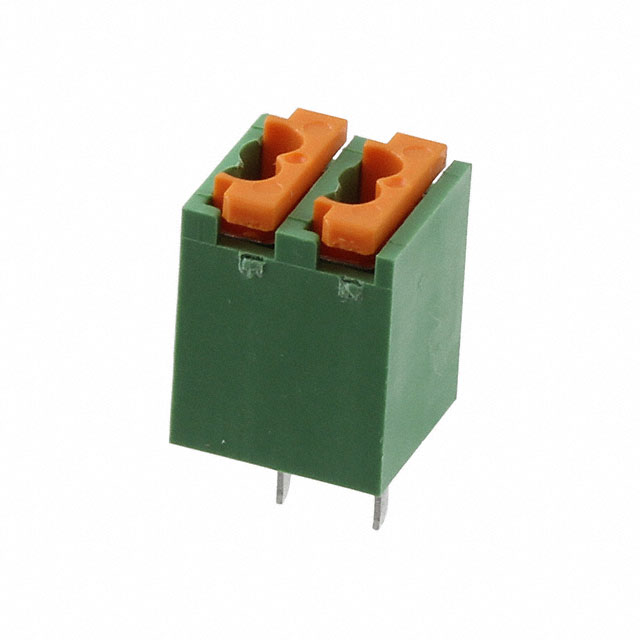

FIXED TERMINAL BLOCKS 2P 3.5MM 180DEG

Search across all available documentation for this part.

Active

Phoenix Contact

FIXED TERMINAL BLOCKS 2P 3.5MM 180DEG

Technical Specifications

Parameters and characteristics for this part

Specification	1891069

Color	Green
Current	4 A
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	2
Voltage	300 V
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	20 AWG
Wire Termination	Screwless - Spring Cage, Tension Clamp

Fixed Terminal Blocks 2P 3.5mm 180DEG

Part	Housing Material	Mounting Type	Positions Per Level	Color	Mating Orientation	Voltage	Pitch [x]	Pitch [x]	Number of Levels	Current	Wire Gauge [Min]	Wire Gauge [Max]	Wire Termination
Phoenix Contact 1891069	Polyamide (PA) Nylon	Through Hole	2	Green	Vertical with Board	300 V	3.5 mm	0.138 in	1	4 A	20 AWG	28 AWG	Screwless - Spring Cage Tension Clamp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fixed Terminal Blocks 2P 3.5mm 180DEG
