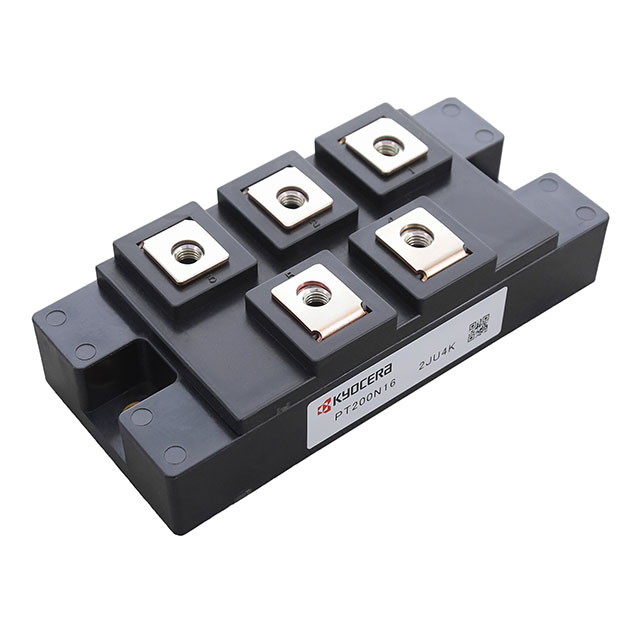

PT200N16

Active

Kyocera AVX

DIODE MODULE 3PHASE 1.6KV 200A

Search across all available documentation for this part.

Active

Kyocera AVX

DIODE MODULE 3PHASE 1.6KV 200A

Technical Specifications

Parameters and characteristics for this part

Specification	PT200N16

Current - Average Rectified (Io)	200 A
Current - Reverse Leakage @ Vr	10 mA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Supplier Device Package	Module
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.45 V
Voltage - Peak Reverse (Max)	1.6 kV

Part	Diode Type	Voltage - Peak Reverse (Max)	Package / Case	Current - Average Rectified (Io)	Mounting Type	Technology	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max) [Max]
Kyocera AVX PT200N16	Three Phase	1.6 kV	Module	200 A	Chassis Mount	Standard	1.45 V	150 °C	-40 °C	Module	10 mA
Kyocera AVX PT200KN8	Three Phase		Module	200 A	Chassis Mount	Standard	1.4 V	150 °C	-40 °C	Module	7 mA	800 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 147.50

General part information

Bridge Rectifier Three Phase Standard 1.6 kV Chassis Mount Module
